On-Vehicle Inspection

1. REMOVE FRONT WHEEL
2. REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY (for 2WD) (See Step 4 in  REMOVAL   )
3. REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY (for 4WD) (See Step 5 in  REMOVAL   )
4. REMOVE FRONT DISC (See Step 5 in  DISASSEMBLY  )
5. INSPECT FRONT AXLE HUB BEARING FOR LOOSENESS
   1. Using a dial indicator, check for looseness near the center of the axle hub.

   Maximum:

   0.05 mm (0.0020 in.)

   NOTE: Ensure that the dial indicator is perpendicular to the measurement surface.

   If looseness exceeds the maximum, replace the front axle hub.

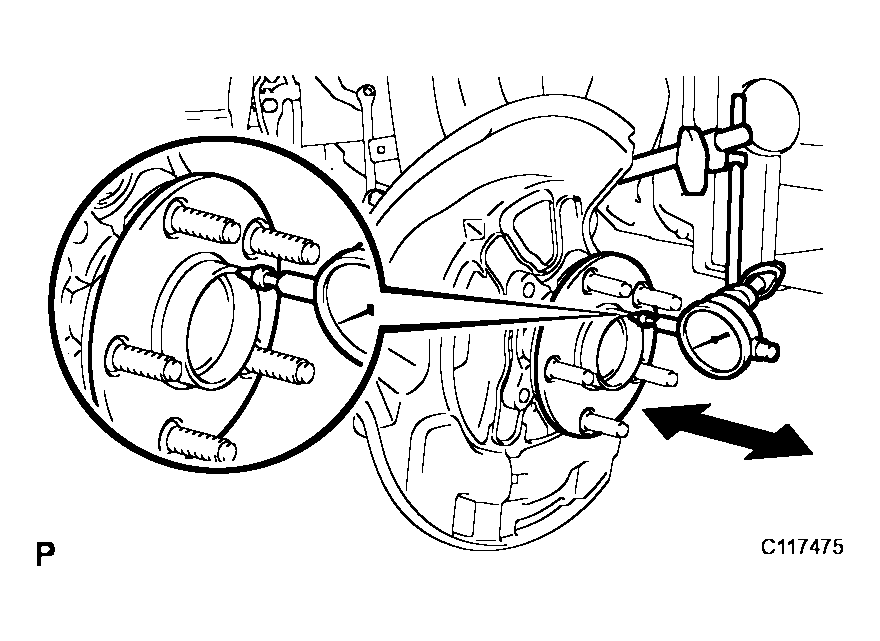

   Fig 1: Checking Looseness Near Center Of Axle Hub Using Dial Indicator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSPECT FRONT AXLE HUB FOR RUNOUT
   1. Using a dial indicator, check for runout on the surface of the axle hub outside the hub bolt.

   Maximum:

   0.05 mm (0.0020 in.)

   NOTE: Ensure that the dial indicator is set perpendicular to the measurement surface.

   If runout exceeds the maximum, replace the front axle hub.

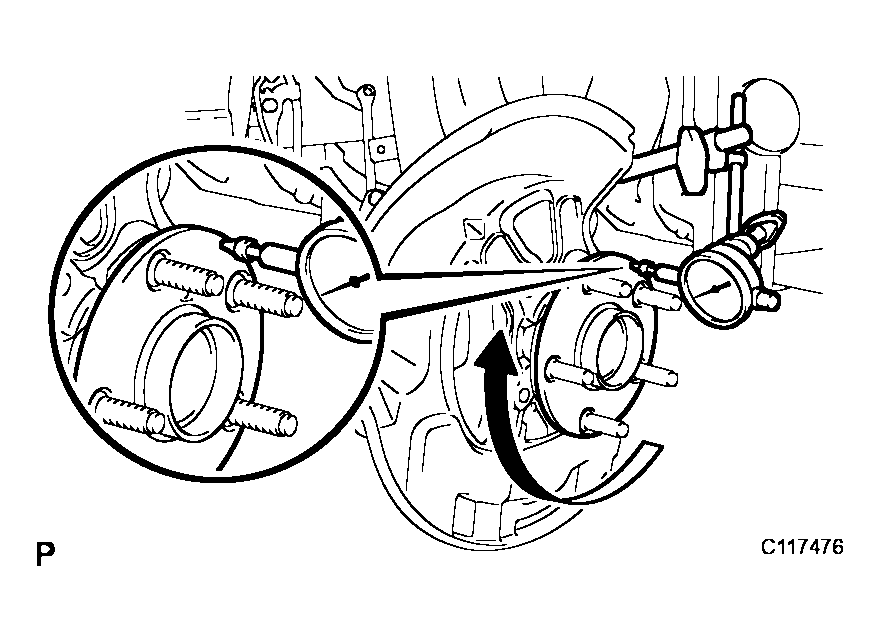

   Fig 2: Checking Runout On Surface Of Axle Hub Outside Hub Bolt Using Dial Indicator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL FRONT DISC (See  REASSEMBLY  )
8. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (for 2WD) (See Step 7 in  INSTALLATION   )
9. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (for 4WD) (See Step 8 in  INSTALLATION   )
10. INSTALL FRONT WHEEL

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
