System Diagram

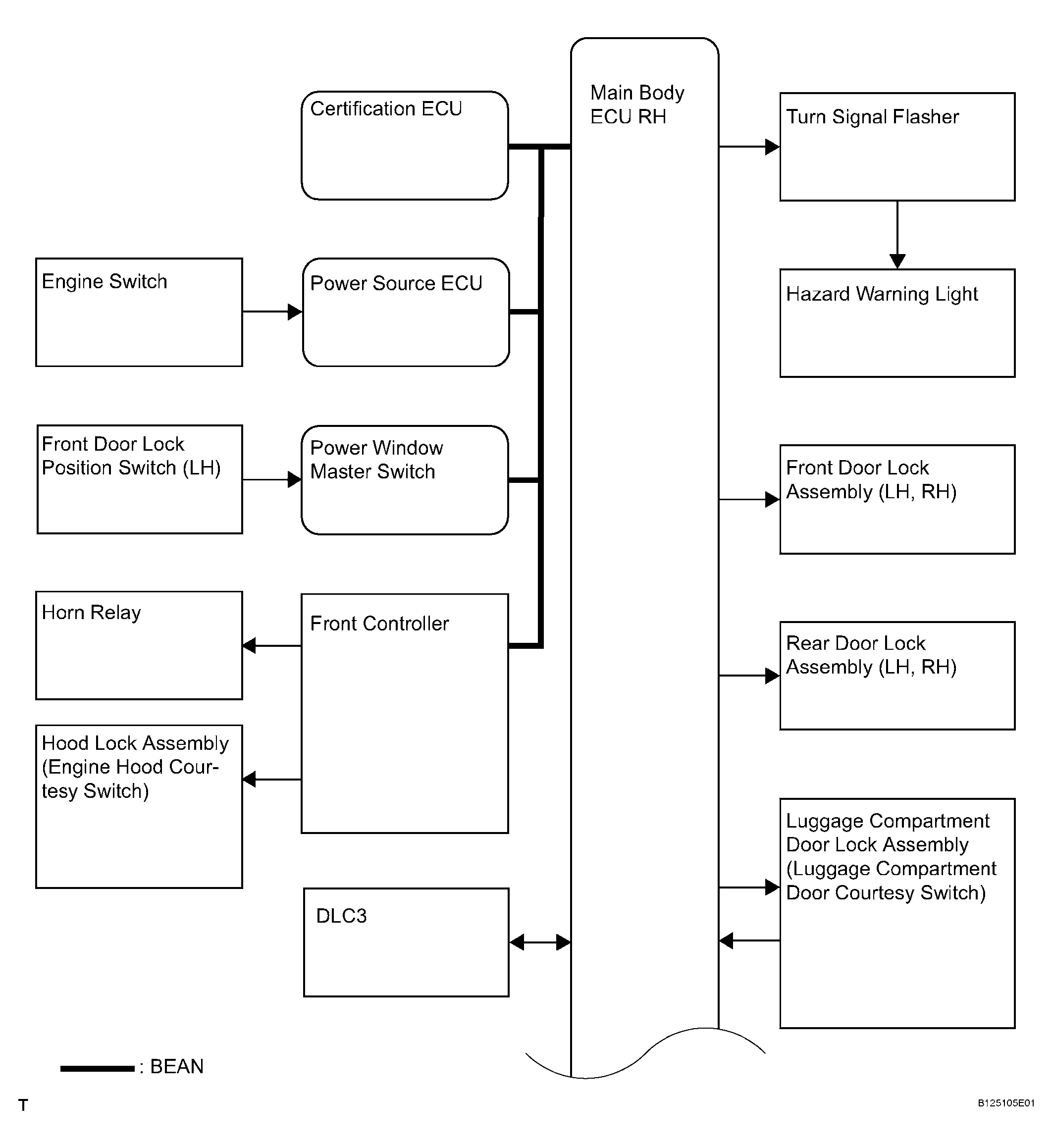

Fig 1: Identifying Theft Deterrent System Diagram (1 Of 2)
G04049113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

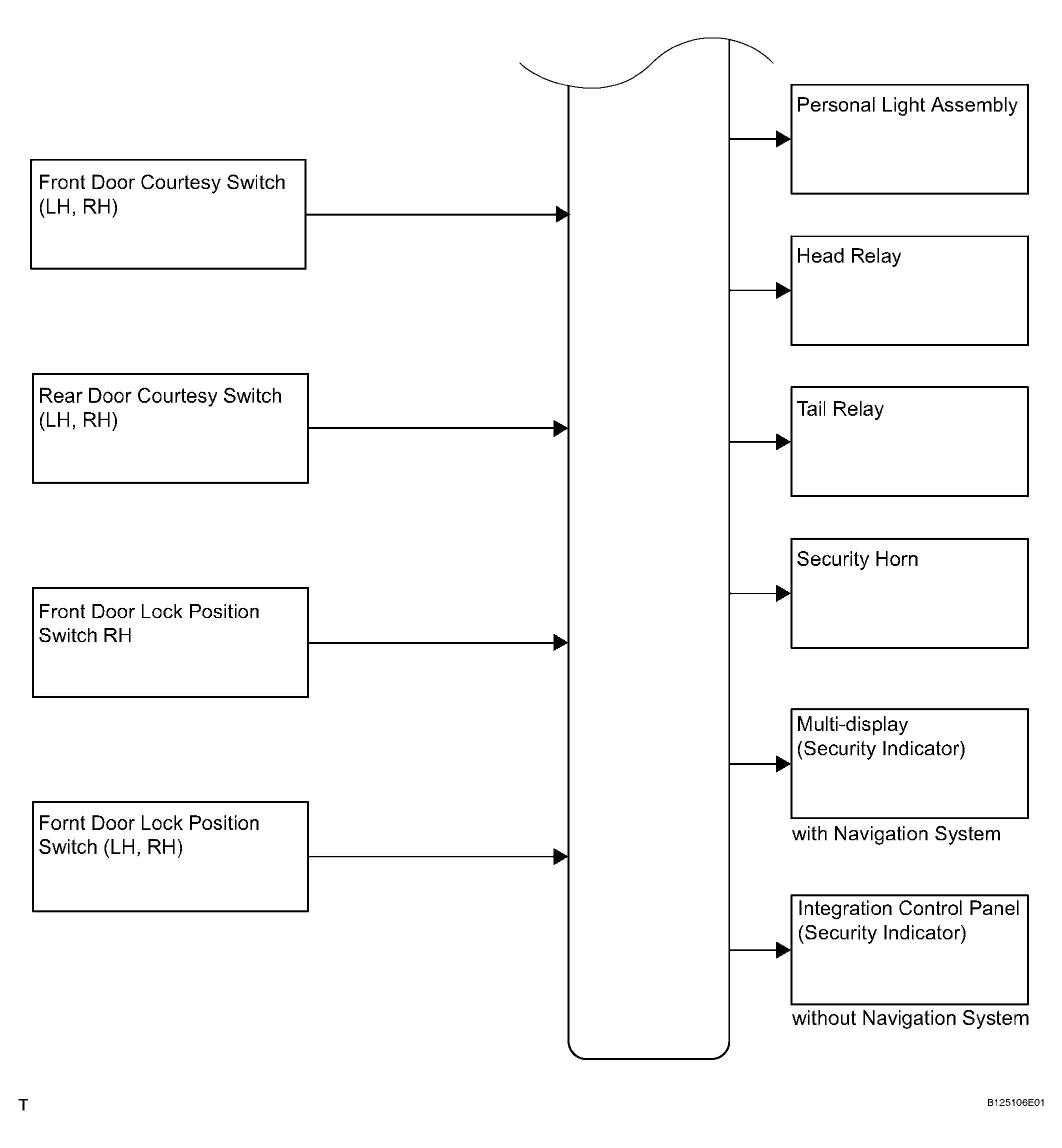

Fig 2: Identifying Theft Deterrent System Diagram (2 Of 2)
G04049114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECU TRANSMITTING SPECIFICATION

Transmitting ECU (Transmitter) Receiving ECU (Receiver) Signal Line
Certification ECU Main body ECU RH IG relay operating states BEAN
Power source ECU Main body ECU RH Engine switch signal BEAN
Power window master switch Main body ECU RH Front door lock signal BEAN
Front controller Main body ECU RH Engine hood courtesy signal BEAN
Main body ECU RH Front controller Vehicle horn sound request BEAN
