Security Horn Assembly: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment (See PRECAUTION ).
  2. REMOVE BATTERY
  3. REMOVE SECURITY HORN ASSEMBLY
    1. Remove the bolt and disconnect the security horn assembly.
    2. Disconnect the connector and remove the security horn assembly.

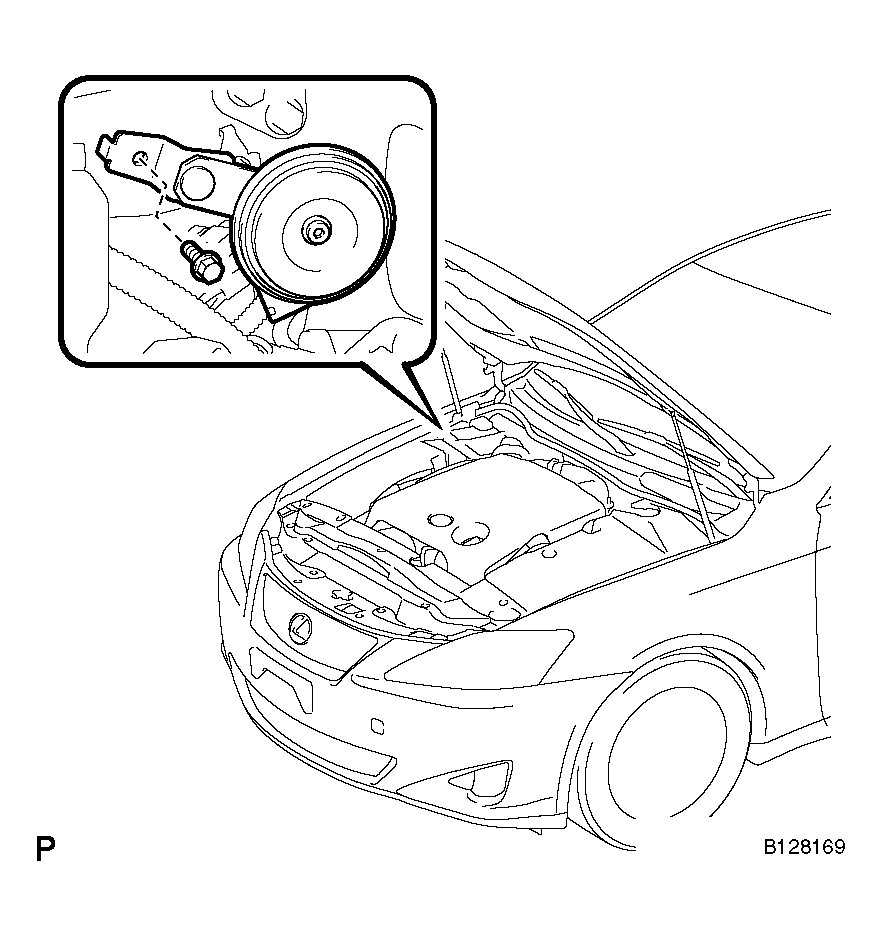

    Fig 1: Removing Security Horn Assembly
    G04049144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
