Security Horn Assembly: Installation

  1. INSTALL SECURITY HORN ASSEMBLY
    1. Connect the connector.
    2. Install the security horn assembly with the bolt.

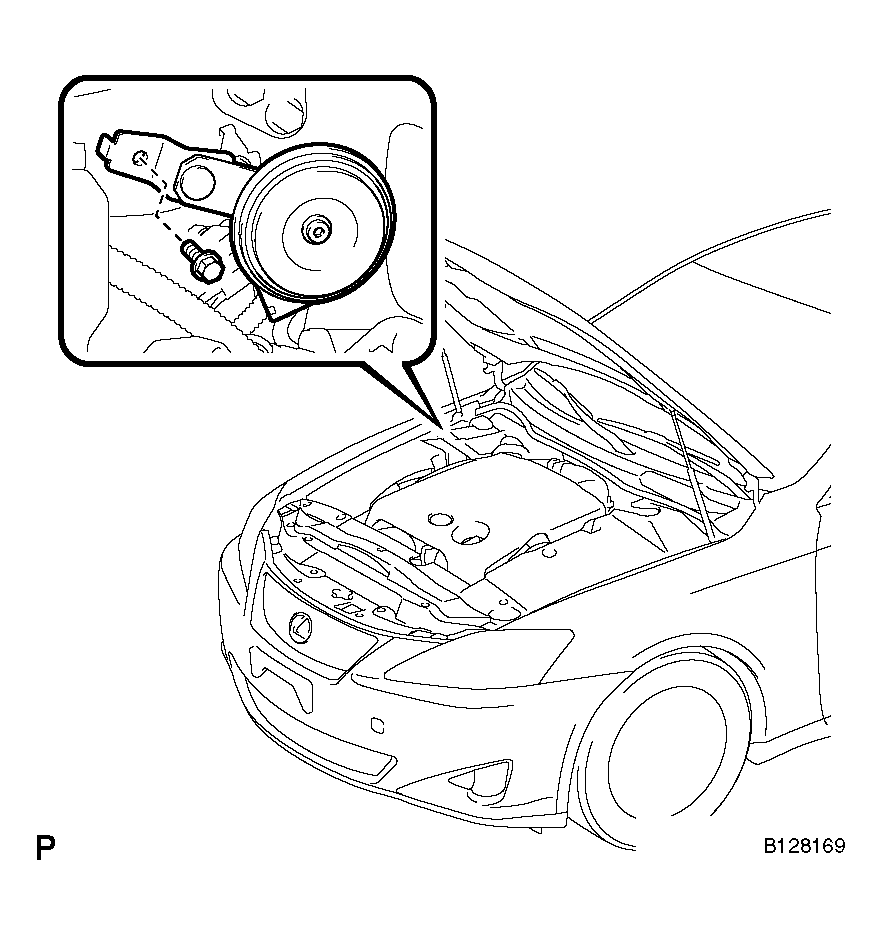

    Fig 1: Installing Security Horn Assembly With Bolt
    G04049146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BATTERY
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  4. PERFORM INITIALIZATION
    NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal (See INITIALIZATION ).
