Security Horn Assembly: Inspection

  1. INSPECT SECURITY HORN ASSEMBLY
    1. Check operation of the horn.

    Standard

    SECURITY HORN SPECIFIED CONDITION

    Measurement Condition Specified Condition
    Battery positive (+) --> Terminal 1 Horn sounds
    Battery negative (-) --> Horn body

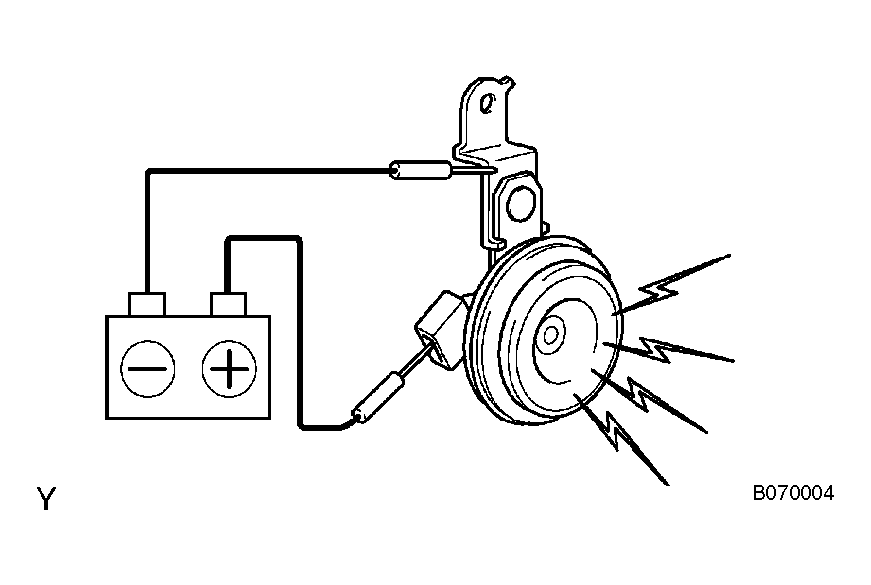

    Fig 1: Inspecting Security Horn Assembly
    G04049145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, replace the security horn assembly.
