Engine Hood Courtesy Switch: Inspection

  1. INSPECT ENGINE HOOD COURTESY SWITCH
    1. Measure the resistance according to the value(s) in TESTER CONNECTION SPECIFIED CONDITION TABLE  .

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION TABLE

    Tester Connection Switch Position Specified Condition
    1 - 2 Free (OFF) 10 k ohms or higher
    Pushed (ON) Below 1 ohms

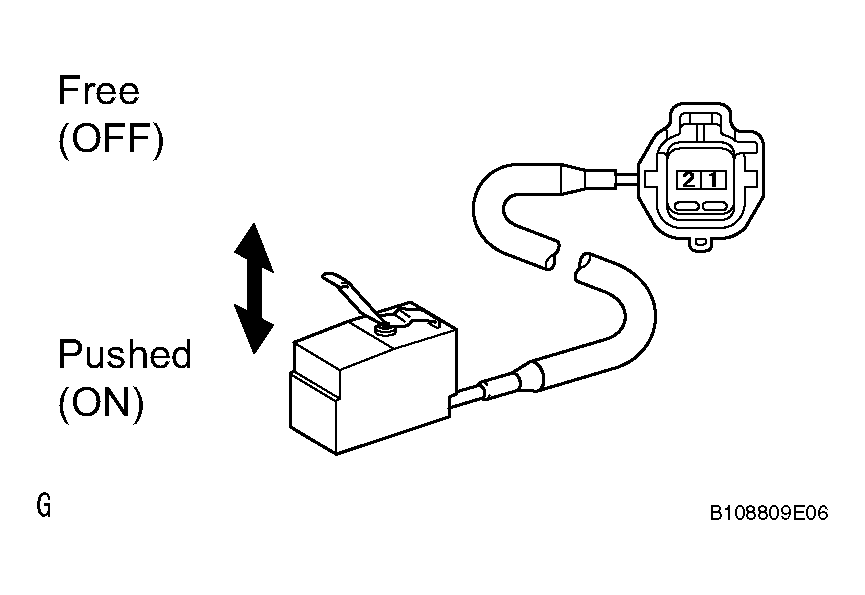

    Fig 1: Inspecting Engine Hood Courtesy Switch
    G04049142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, replace the hood lock assembly.
