Television Camera: Installation

INSTALL TELEVISION CAMERA ASSEMBLY
1. Engage the 2 claws to temporarily install the television camera assembly from to the luggage compartment.

  Fig 1: Installing Television Camera Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

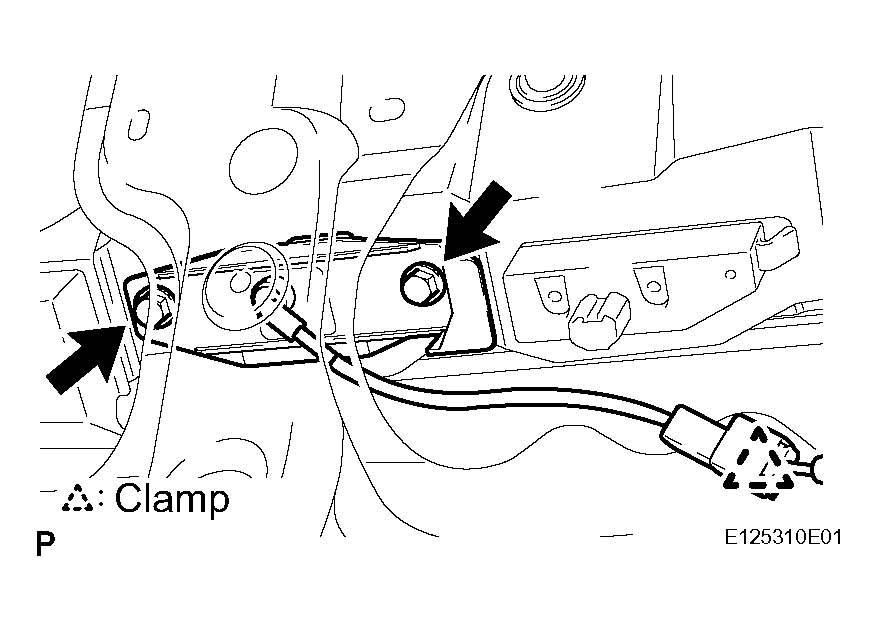

2. Install the television camera assembly with the 2 screws.
3. Connect the television camera connector.

  Fig 2: Connecting Television Camera Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the television camera connector clamp.
INSTALL LUGGAGE COMPARTMENT DOOR REINFORCEMENT
1. Temporarily install the luggage compartment door reinforcement with the clip.

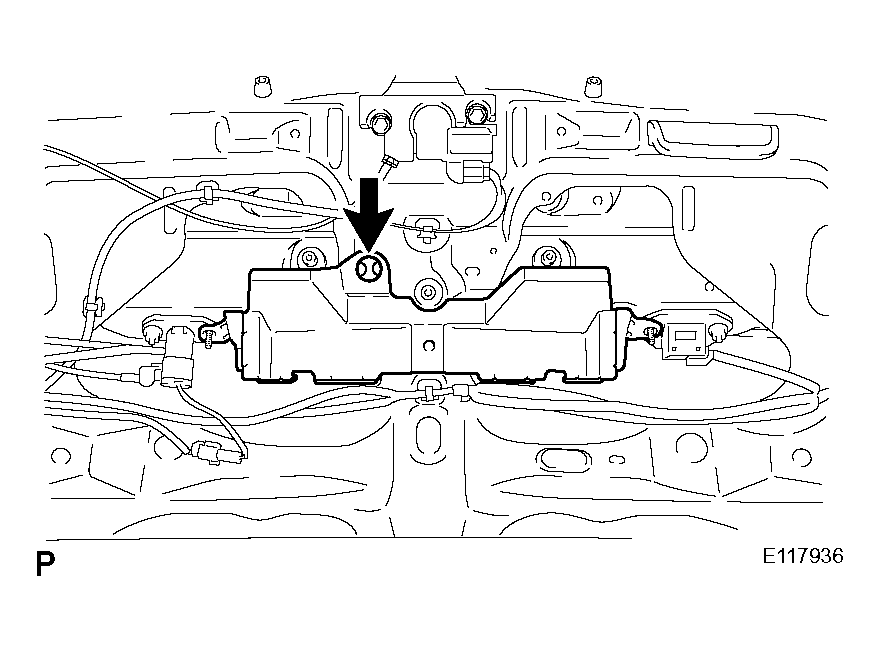

  Fig 3: Installing Luggage Compartment Door Reinforcement With Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the luggage compartment door reinforcement with the 2 nuts.

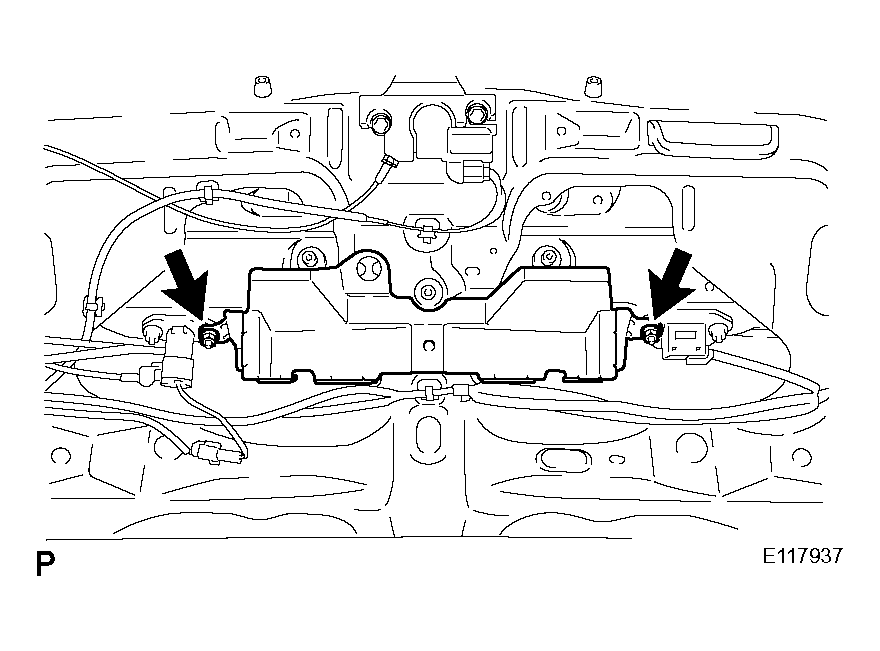

  Fig 4: Installing Luggage Compartment Door Reinforcement With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LUGGAGE COMPARTMENT DOOR COVER
INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE (See step 13 in REASSEMBLY )
INSTALL LUGGAGE LOCK CONTROL CABLE PLATE (See step 14 in REASSEMBLY )
INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
