System Diagram: Notes

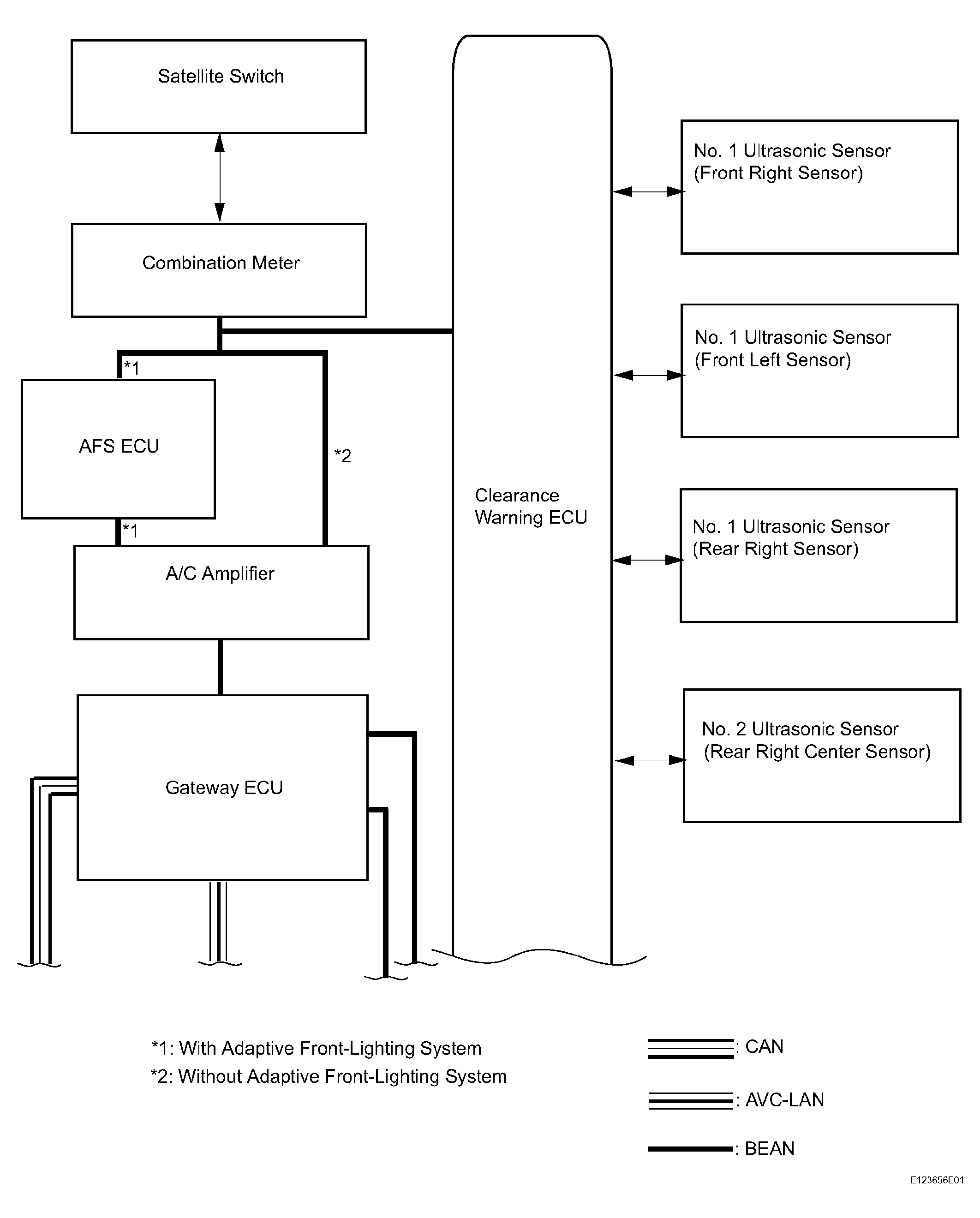

Fig 1: System Diagram - Park Assist/Monitoring Clearance Sonar System (1 Of 2)
G04050554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

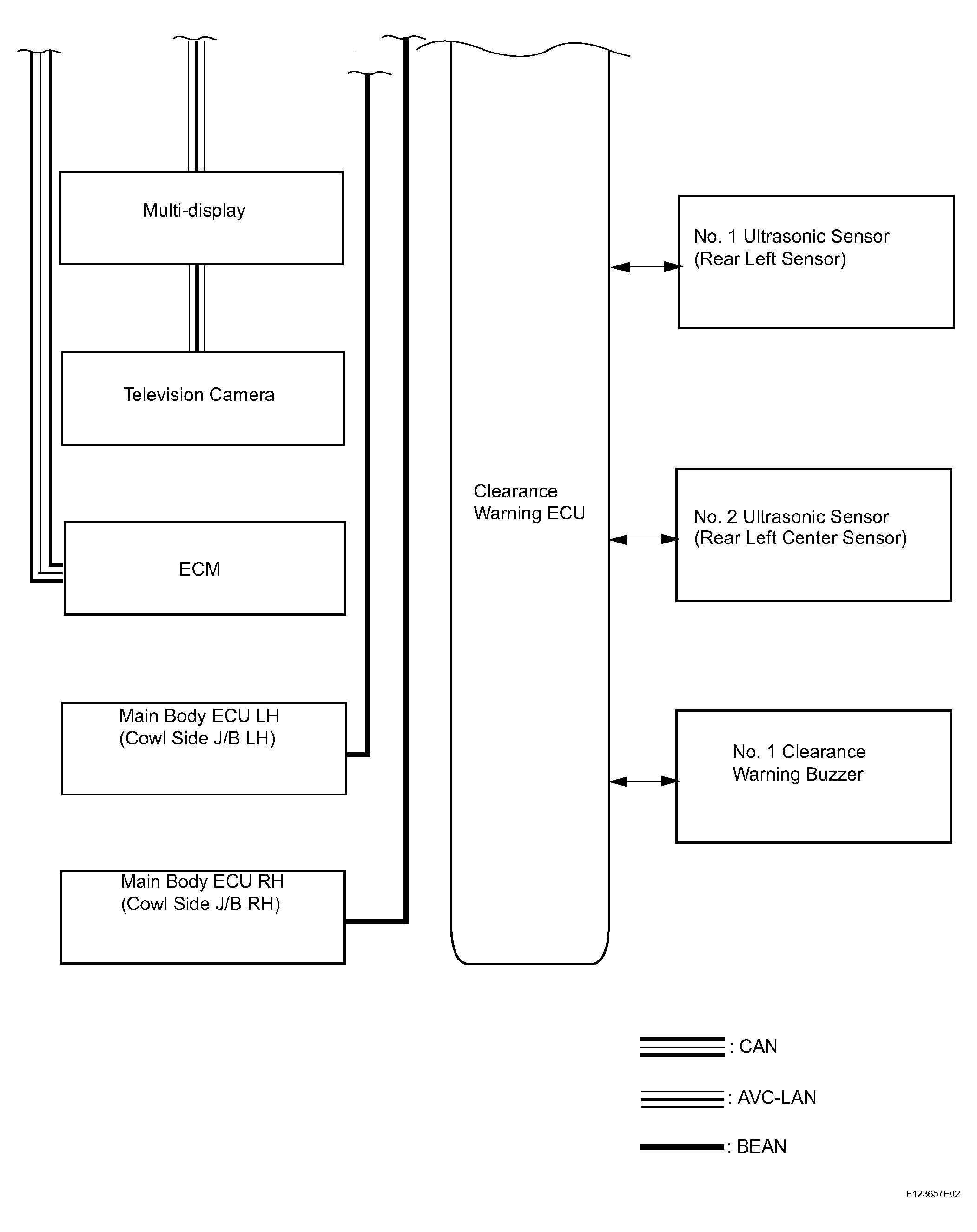

Fig 2: System Diagram - Park Assist/Monitoring Clearance Sonar System (2 Of 2)
G04050555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
