DTC B2782 Power Source Control ECU Malfunction: Wiring Diagram

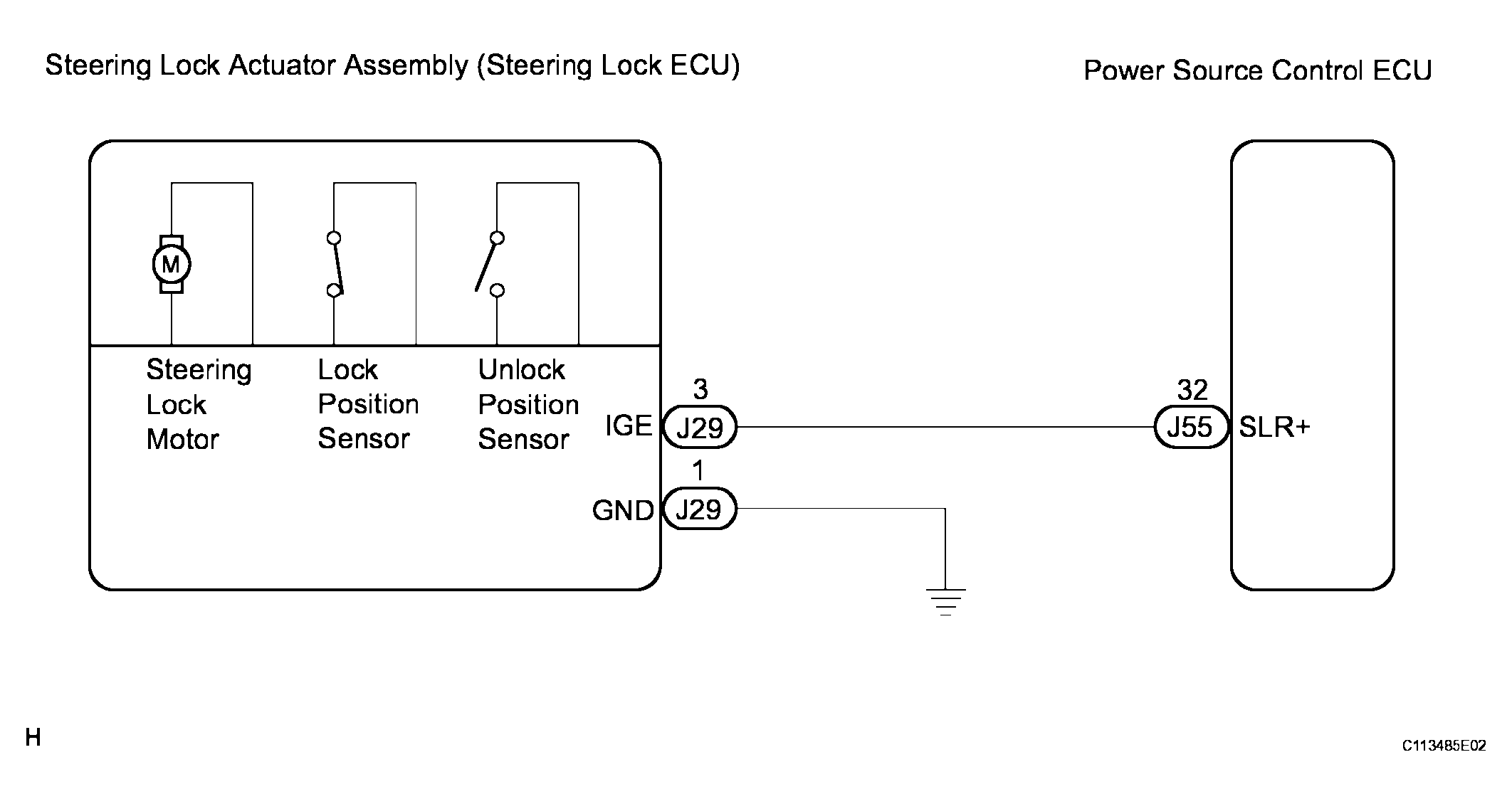

Fig 1: Identifying Power Source Control ECU Wiring Diagram

G04048007

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
