ECM Power Source Circuit: Wiring Diagram

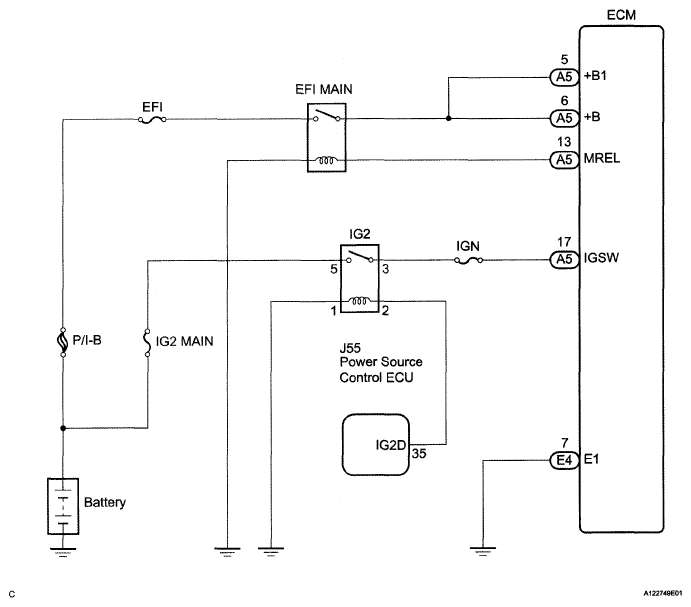

Fig 1: ECM Power Source - Wiring Diagram (1 Of 2)
G05316591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

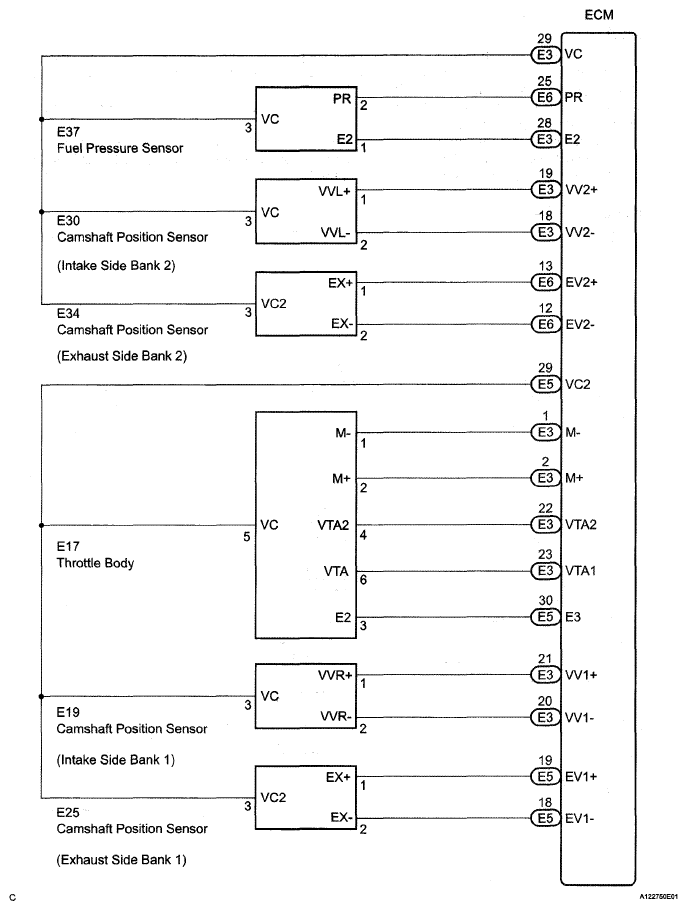

Fig 2: ECM Power Source - Wiring Diagram (2 Of 2)
G05316592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
