Multiplex Communication System - AVC-LAN: Notes

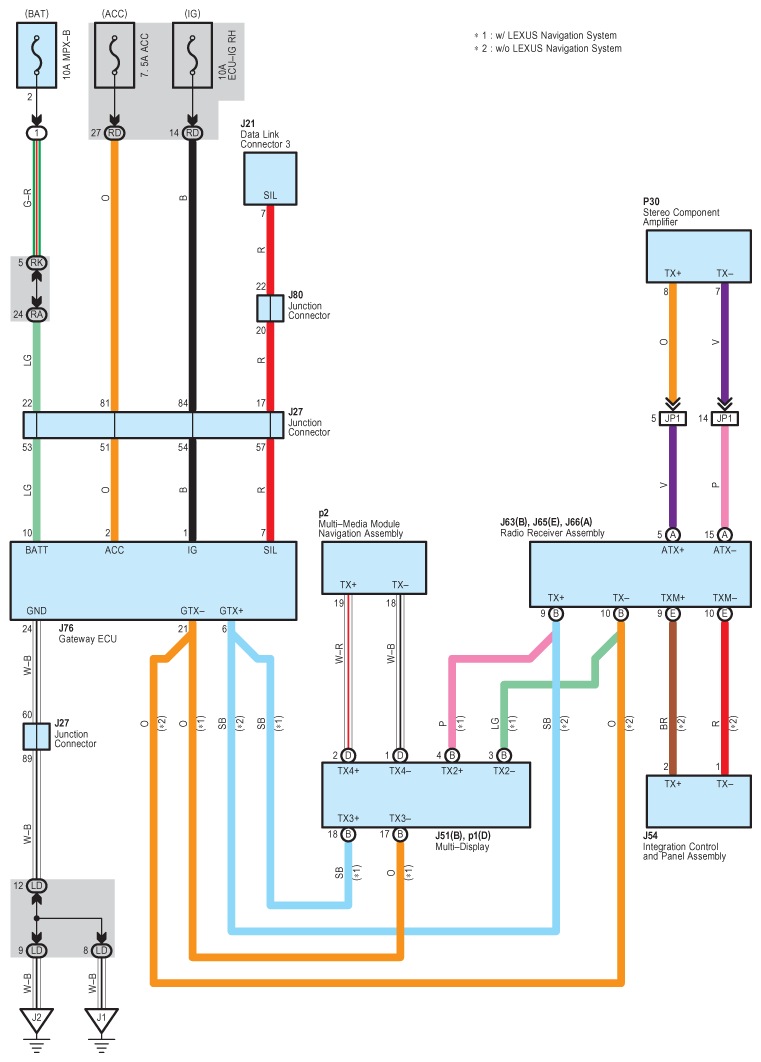

Fig 1: Multiplex Communication System - AVC-LAN - Wiring Diagram

G08918397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
