Home >> Lexus >> 2007 >> IS 250 AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Warning Systems >> Park Assist/Monitoring >> Rear View Monitor System >> Display Signal Circuit between Radio and Navigation Assembly and Television Camera Assembly >> Wiring Diagram

Display Signal Circuit between Radio and Navigation Assembly and Television Camera Assembly: Wiring Diagram

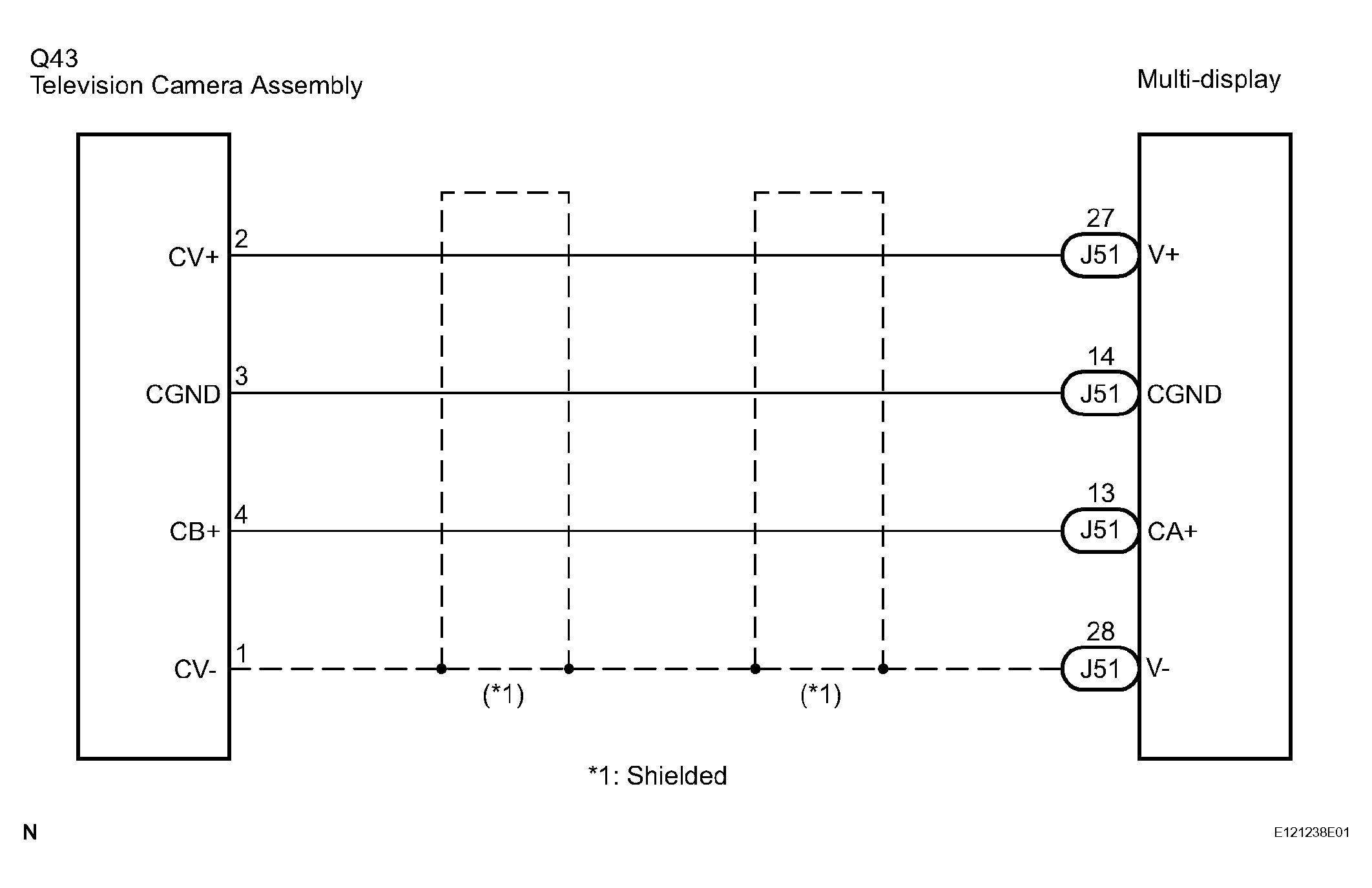

Fig 1: Television Camera Assembly Wiring Diagram
G04050615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
