Inspection Procedure
- CHECK HARNESS AND CONNECTOR (TRANSFER INDICATOR SWITCH - BODY GROUND)
- Disconnect the transfer indicator switch No. 2 connector.
- Measure the resistance according to the value (s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION TABLETester Connection Specified Condition 2 - Body ground Below 1 Ω NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to Next Step
- INSPECT TRANSFER INDICATOR SWITCH NO. 2
- Remove the transfer indicator switch No. 2.
- Measure the resistance according to the value (s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION TABLESwitch Position Tester Connection Specified Condition Free 1 -2 10 kΩ or higher Pushed in ↑ Below 1 Ω NG: REPAIR OR REPLACE TRANSFER INDICATOR SWITCH NO. 2 (TRANSFER NEUTRAL POSITION SWITCH)
OK: Go to Next Step
- CHECK HARNESS AND CONNECTOR (TRANSFER INDICATOR SWITCH - ECM)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the connector from the ECM.
- Measure the resistance according to the value (s) in the table below.
Standard resistance (Check for open)

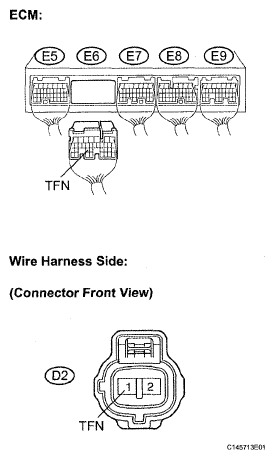

TESTER CONNECTION SPECIFIED CONDITION TABLETester Connection Specified Condition E6-25 (TFN) - D2-1 (TFN) Below 1 Ω - Measure the resistance according to the value (s) in the table below.
Standard resistance (Check for short)
TESTER CONNECTION SPECIFIED CONDITION TABLETester Connection Specified Condition E6-25 (TFN) - Body ground 10 kΩ or higher NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE ECM
