Air Cooled Oil Cooler: Components

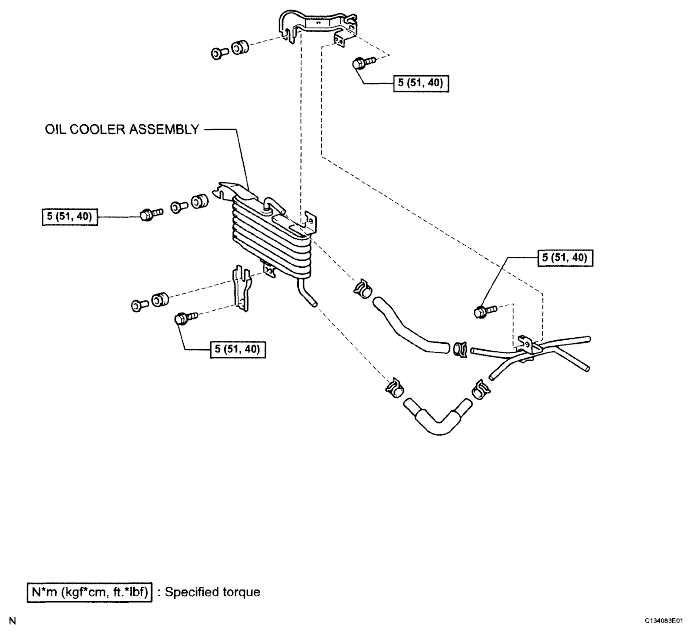

Fig 1: Identifying Air Cooled Oil Cooler Replacement Components With Torque Specifications

G04963386

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
