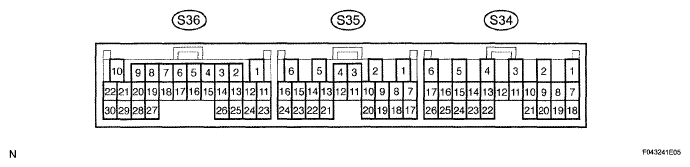

Terminals Of Ecu
VOLTAGE SPECIFICATION TABLE
| Symbols (Terminal No.) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| GND (S36-1) - Body ground | W-B - Body ground | Ground | Always | Below 1 V |
| TS (S36-5) - GND (S36-1) | R-B - W-B | Test mode input signal | Ignition switch ON, terminals, TS and CG of DLC3 connected | Below 1 V |
| TS (S36-5) - GND (S36-1) | R-B - W-B | Test mode input signal | Ignition switch ON, terminals TS and CG of DLC3 not connected | 10 to 14 V |
| TC (S36-6) - GND (S36-1) | P-L - W-B | Diagnosis mode input signal | Ignition switch ON, terminals TC and CG of DLC3 connected | Below 1 V |
| TC (S36-6) - GND (S36-1) | P-L - W-B | Diagnosis mode input signal | Ignition switch ON, terminals TC and CG of DLC3 not connected | 10 to 14 V |
| FLO (S36-8) - GND (S36-1) | L-0 - W-B | Front left speed sensor input signal | Vehicle speed 12 mph (20 km/h) or higher | Pulse generation |
| FRO (S36-9) - GND (S36-1) | L-R - W-B | Front right speed sensor input signal | Vehicle speed 12 mph (20 km/h) or higher | Pulse generation |
| IG (S36-10) - GND (S36-D | GR - W-B | Power source | Ignition switch ON | 10 to 14 V |
| K1 (S36-15) - GND (S36-1) | L - W-B | KDSS indicator light | Ignition switch ON, KDSS indicator light OFF | 10 to 14 V |
| SIL (S36-20) - GND (S36-1) | W - W-B | Diagnosis tester communication signal | Ignition switch ON, communication not established | 8 V or higher |
| SGG1 (S36-25) - GND (S36-1) | L-Y - W-B | Acceleration sensor ground | Always | Below 1 V |
| SOP2 (S36-27) - GND (S36-1) | Y - W-B | Pressure sensor input signal | Ignition switch ON | 0.4 to 4.6 V |
| SOG1 (S36-28) - GND (S36-1) | R-L - W-B | Acceleration sensor input signal | Ignition switch ON, vehicle is level | Approx. 2.5 V |
| SS3- (S36-29) - GND (S36-1) | W - W-B | Steering angle sensor input signal | Ignition switch ON | Pulse generation |
| SS3+ (S36-30) - GND (S36-1) | R - W-B | Steering angle sensor input signal | Ignition switch ON | Pulse generation |
| SLAL (S34-7) - GND (S36-1) | LG - W-B | Accumulator solenoid valve output signal (Lower) | Ignition switch ON, vehicle is stopped | Below 1 V |
| SLAU (S34-8) - GND (S36-1) | P-G - W-B | Accumulator solenoid valve output signal (Upper) | Ignition switch ON, vehicle is stopped | Below 1 V |
| SGP1 (S34-21) - GND (S36-1) | G - W-B | Pressure sensor ground | Always | Below 1 V |
| SBP1 (S34-22) - GND (S36-1) | V - W-B | Power source (Pressure sensor) | Ignition switch ON | 4.4 to 5.4 V |
| SOP1 (S34-23) - GND (S36-1) | B - W-B | Pressure sensor input signal | Ignition switch ON | 0.4 to 4.6 V |
| GND2 (S35-5) - Body ground | W-B - Body ground | Ground | Always | Below 1 V |
| IG2 (S35-6) - GND (S36-D | GR - W-B | Power source | Ignition switch ON | 10 to 14 V |
| STP (S35-12) - GND (S36-1) | G-Y - W-B | Stop light switch input signal | Brake pedal depressed Brake pedal released |
10 to 14 V Below 1 V |
| SBP2 (S35-18) - GND (S36-1) | GR-B - W-B | Power source (Pressure sensor) | Ignition switch ON | 4.4 to 5.4 V |
| SBG1 (S35-21) - GND (S36-1) | G-B - W-B | Power source (Acceleration sensor) | Ignition switch ON | 4.4 to 5.4 V |
| SGP2 (S35-22) - GND (S36-1) | LG - W-B | Pressure sensor ground | Always | Below 1 V |
