ECM Power Source Circuit: Wiring Diagram

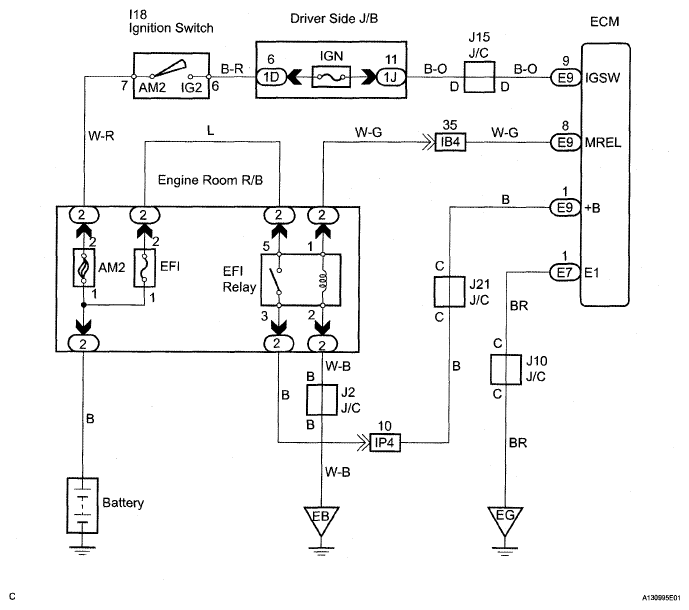

Fig 1: Identifying ECM Power Source Wiring Diagram

G05264268

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
