Engine Control System - SFI System Diagnostic Introduction, Diagnostic Trouble Code Table
>>
SFI System
>>
Parts Location
Parts Location

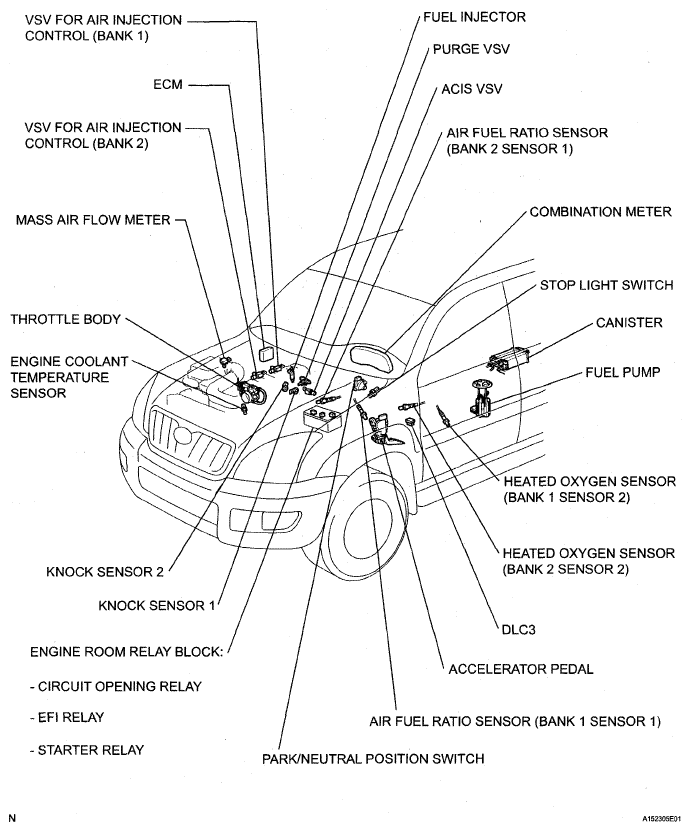

Fig 1: Identifying SFI System Replacement Components (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

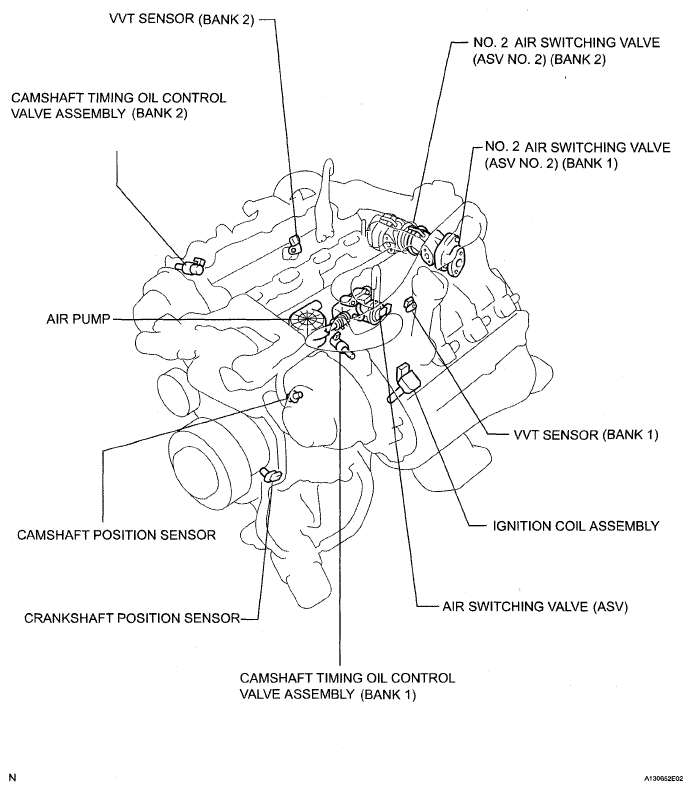

Fig 2: Identifying SFI System Replacement Components (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

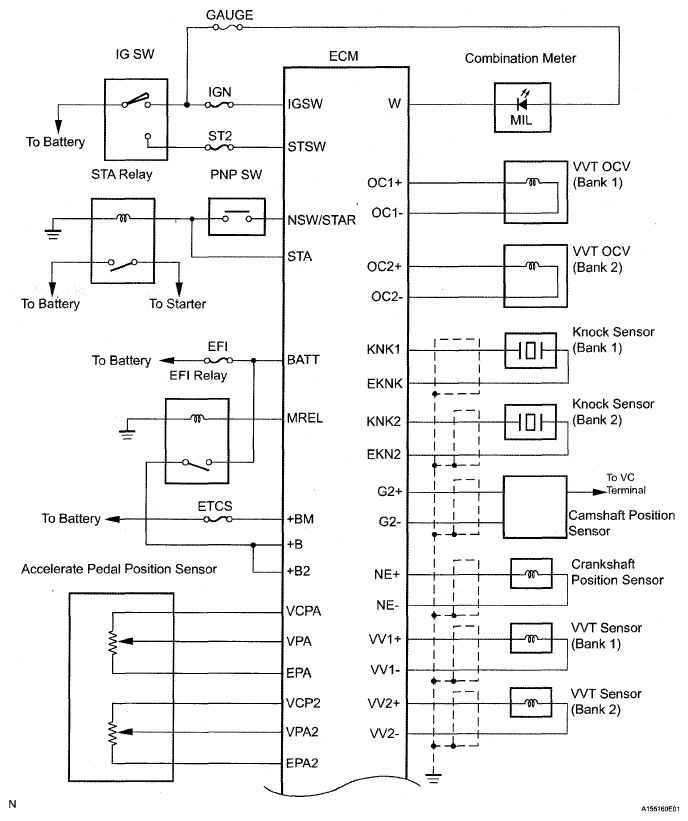

Fig 3: Identifying SFI System Diagram (1 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

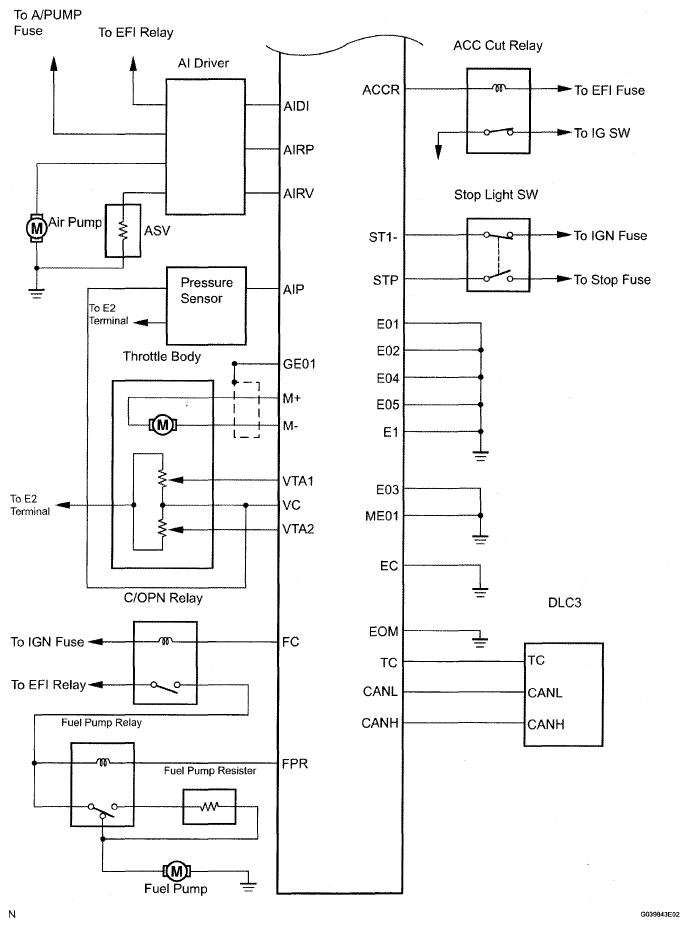

Fig 4: Identifying SFI System Diagram (2 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

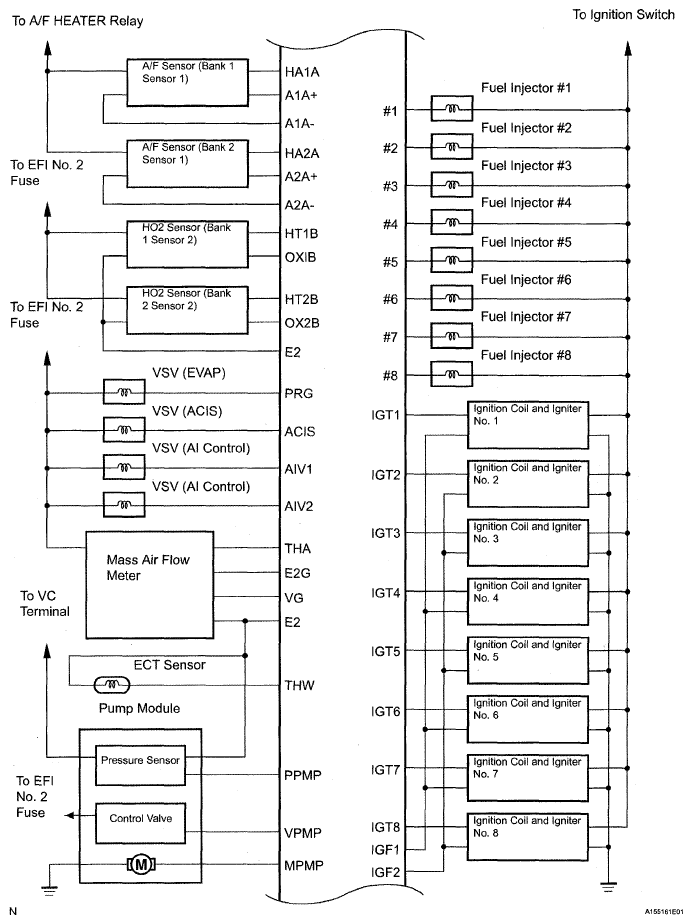

Fig 5: Identifying SFI System Diagram (3 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
