Air Pump: Components

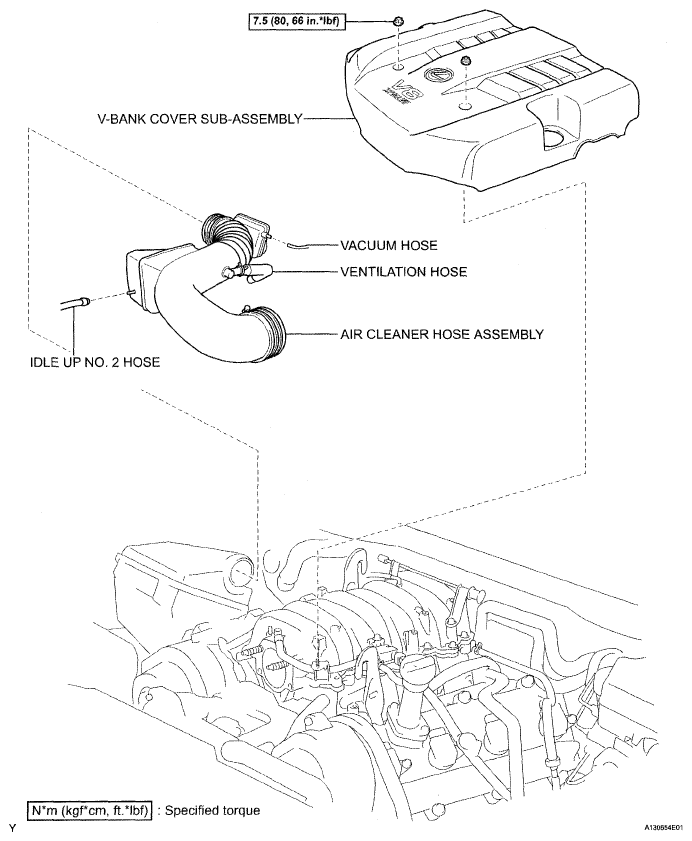

Fig 1: Air Pump Replacement Components With Torque Specifications (1 Of 3)
G05264921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

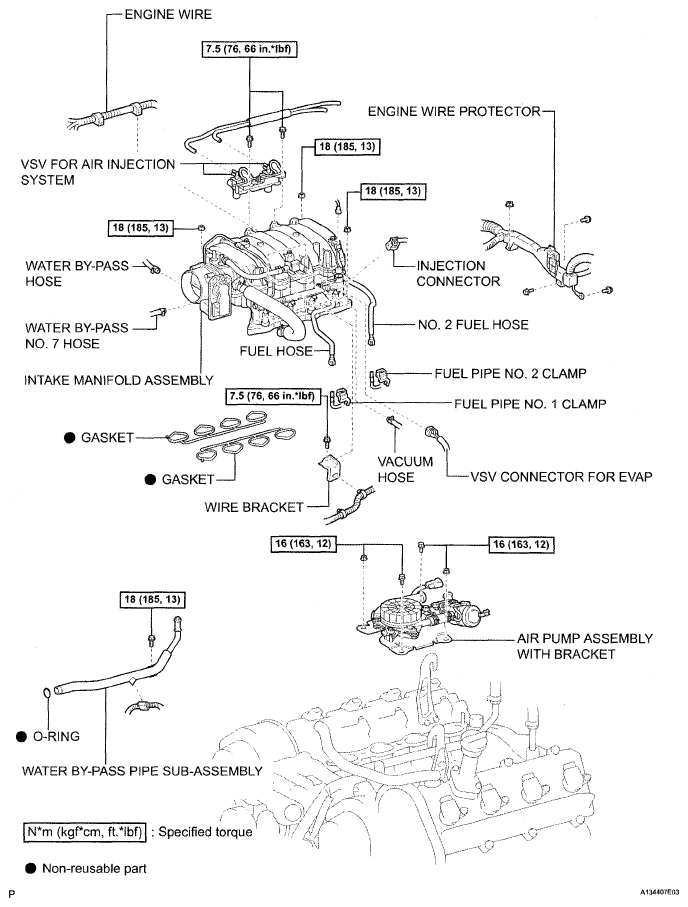

Fig 2: Air Pump Replacement Components With Torque Specifications (2 Of 3)
G05264922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

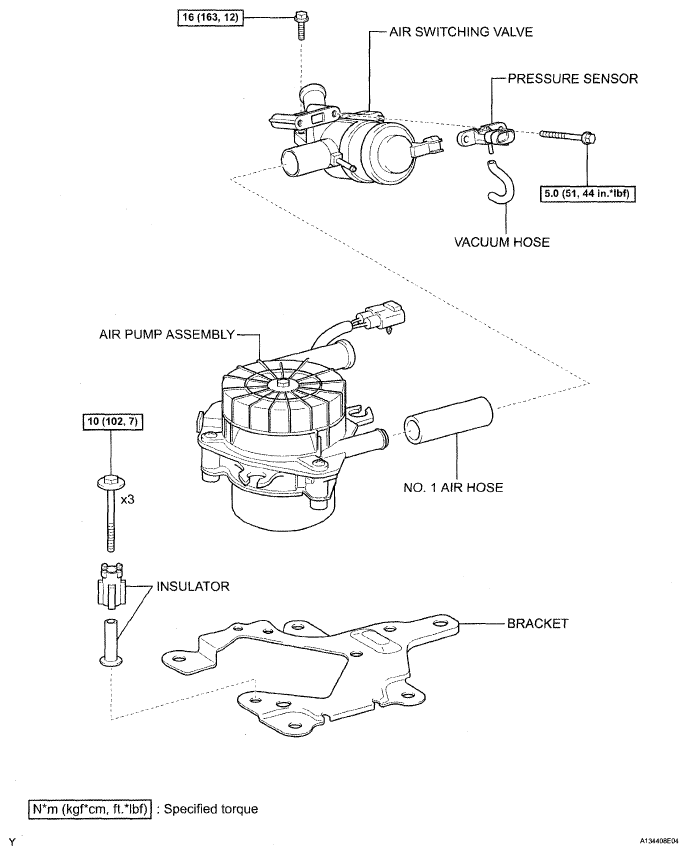

Fig 3: Air Pump Replacement Components With Torque Specifications (3 Of 3)
G05264923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
