Power Outlet - 115V: Notes

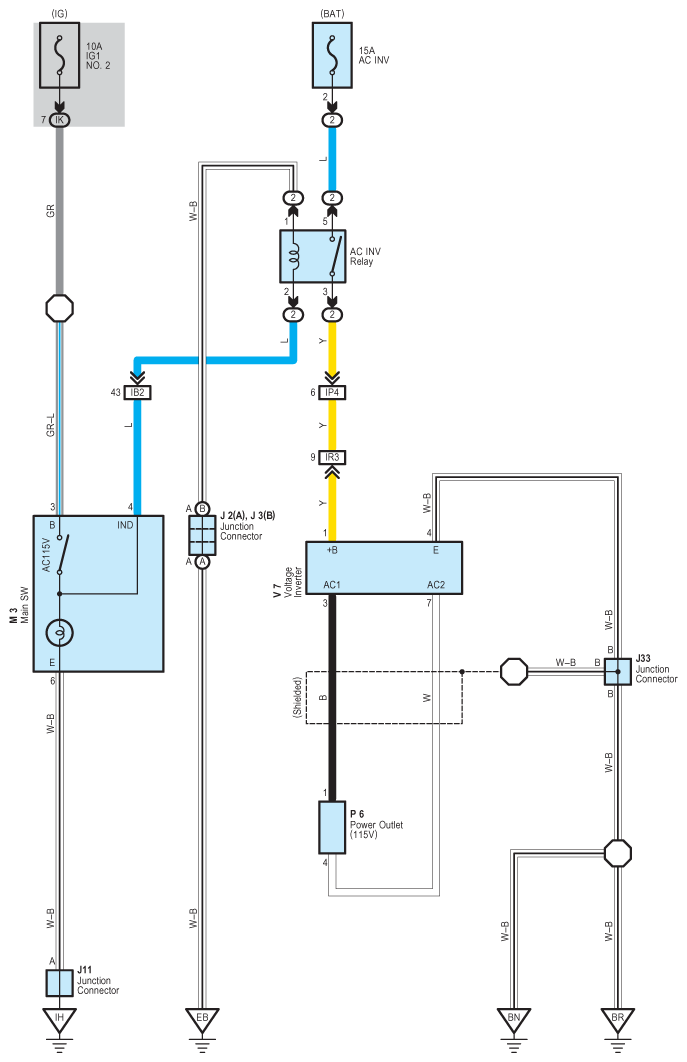

Fig 1: Power Outlet - 115V System Wiring Diagram

G08917662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
