Navigation and Parking Assist (Rear View Monitor): Notes

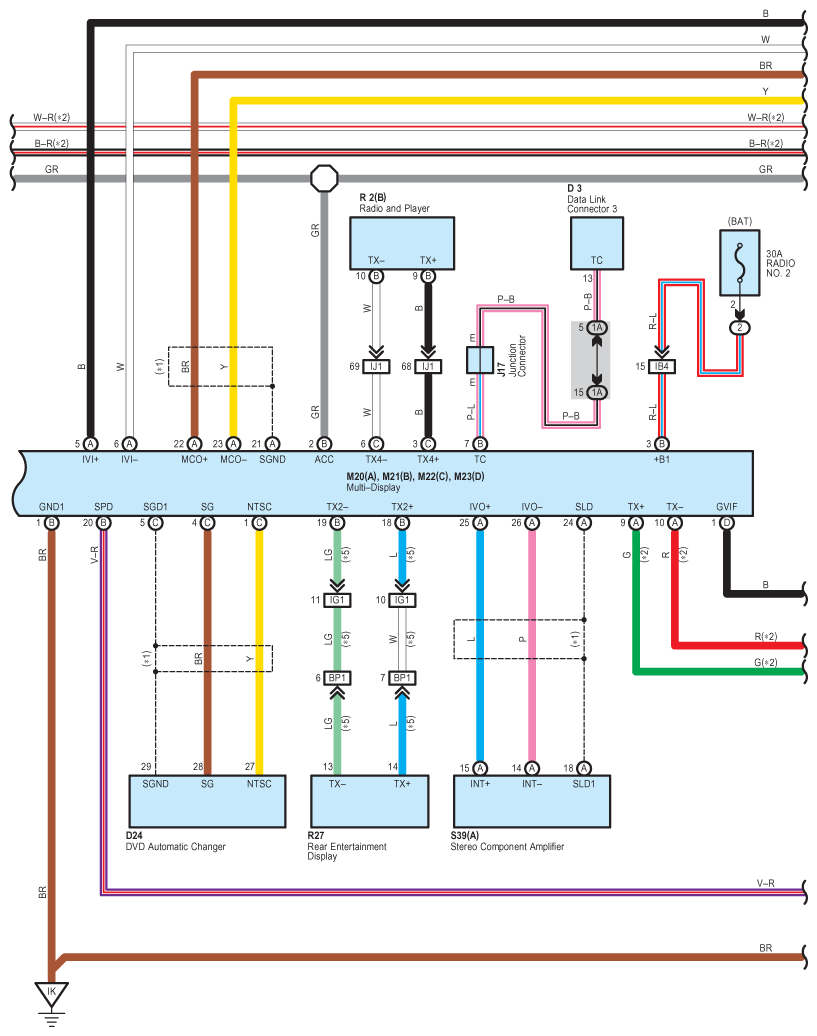

Fig 1: Navigation And Parking Assist (Rear View Monitor) System Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

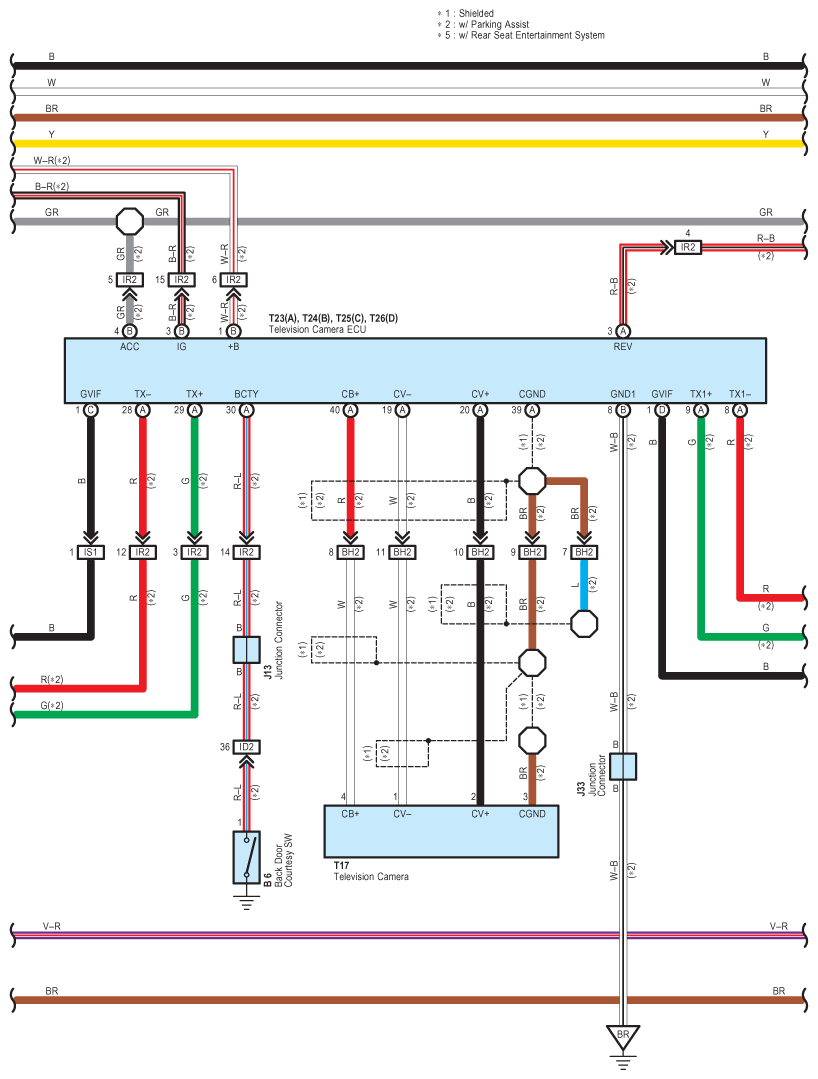

Fig 2: Navigation And Parking Assist (Rear View Monitor) System Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

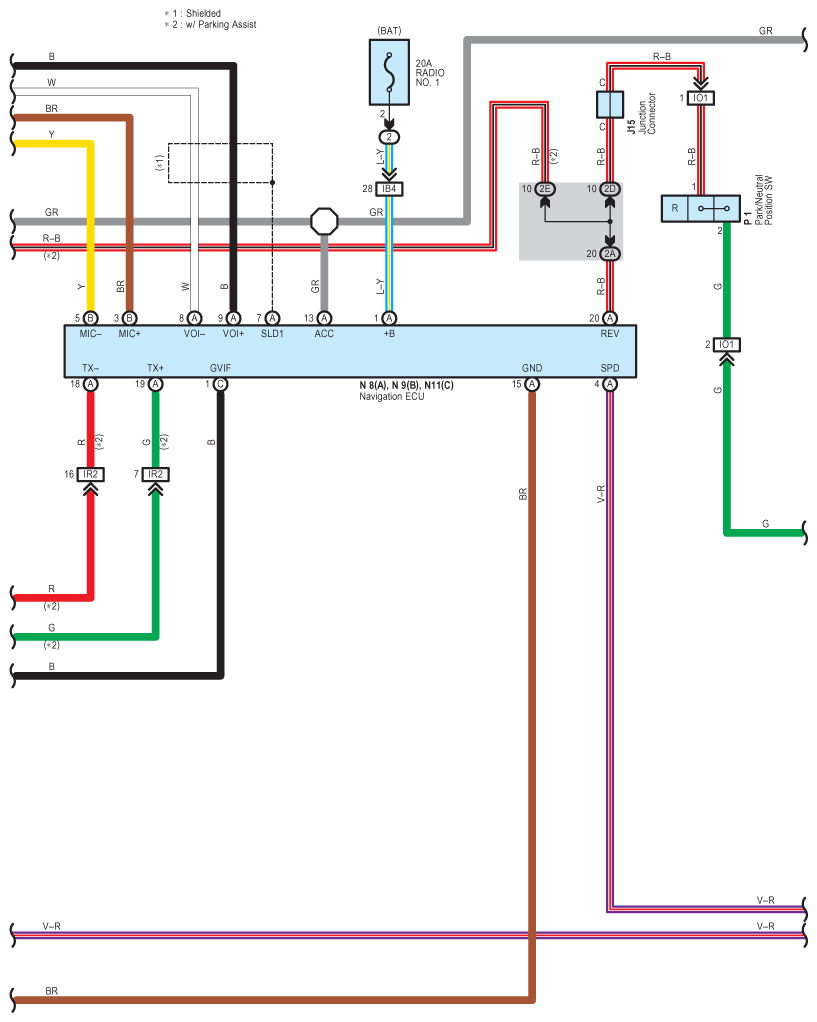

Fig 3: Navigation And Parking Assist (Rear View Monitor) System Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

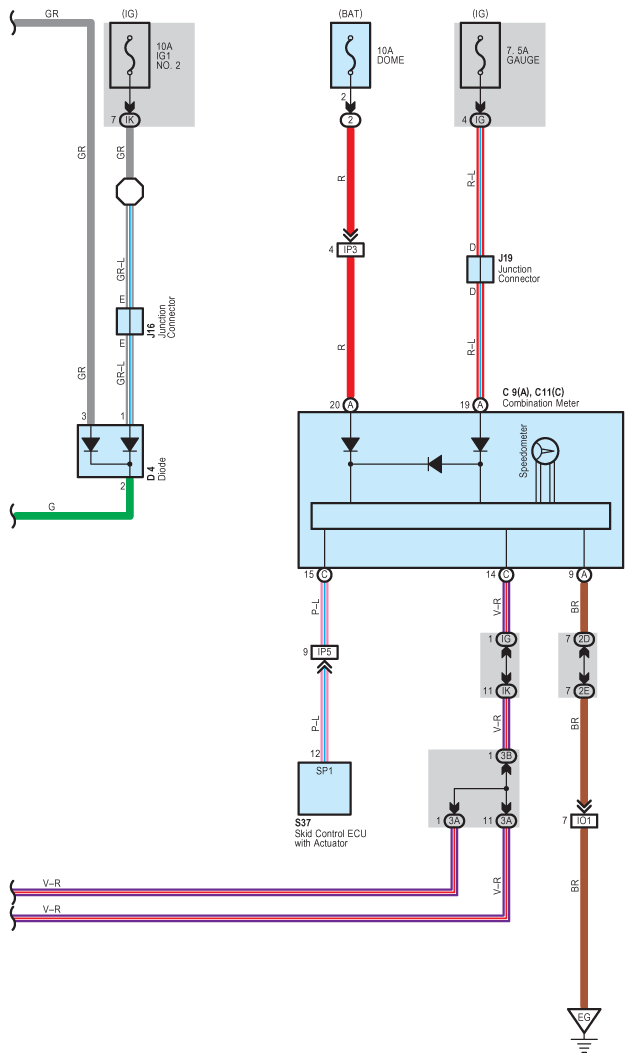

Fig 4: Navigation And Parking Assist (Rear View Monitor) System Wiring Diagram (4 Of 6)

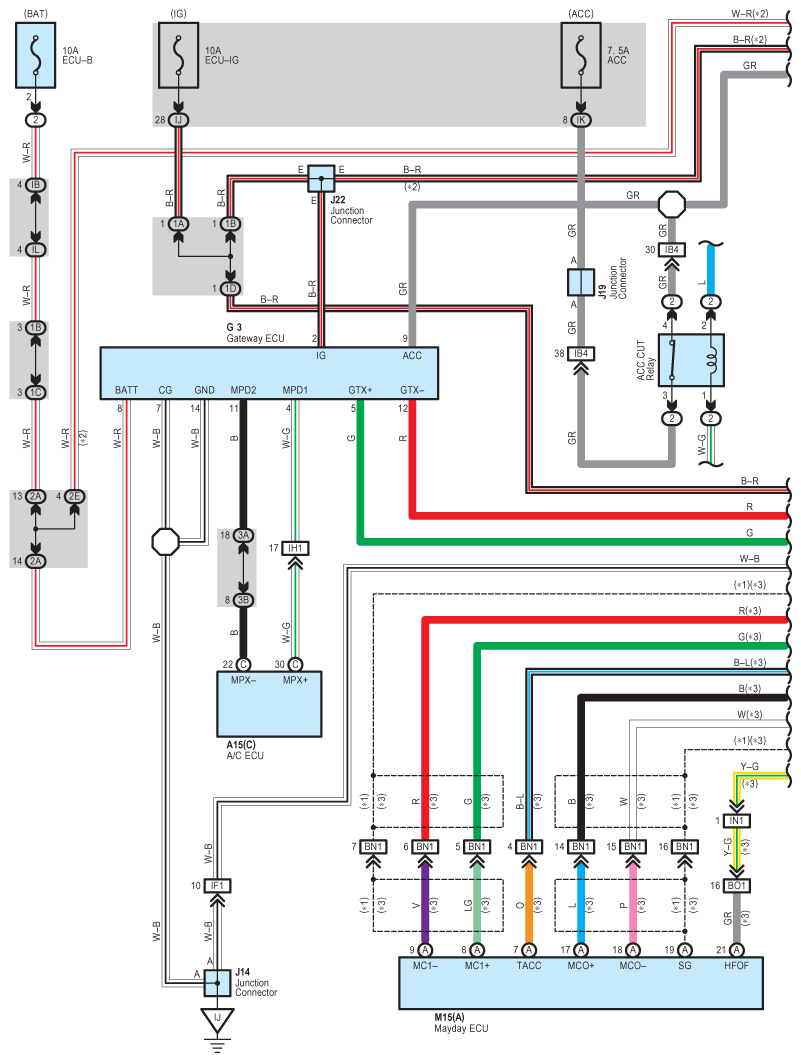

Fig 5: Navigation And Parking Assist (Rear View Monitor) System Wiring Diagram (5 Of 6)

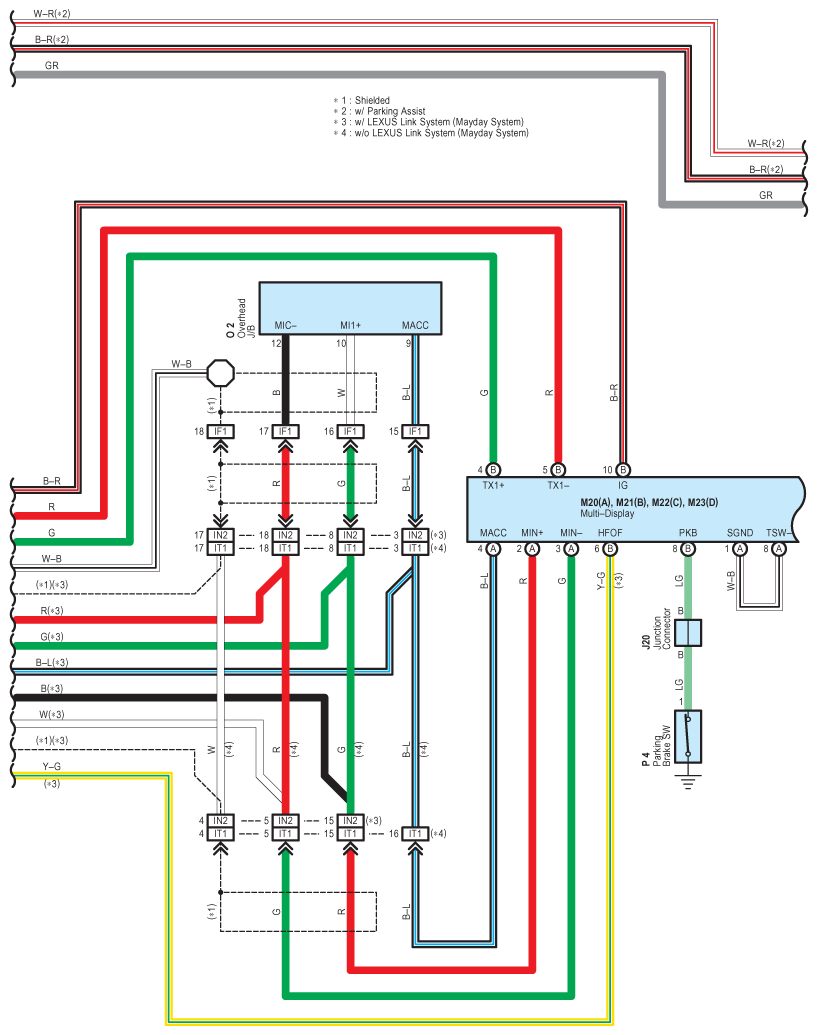

Fig 6: Navigation And Parking Assist (Rear View Monitor) System Wiring Diagram (6 Of 6)
