Key Reminder and Seat Belt Warning: Notes

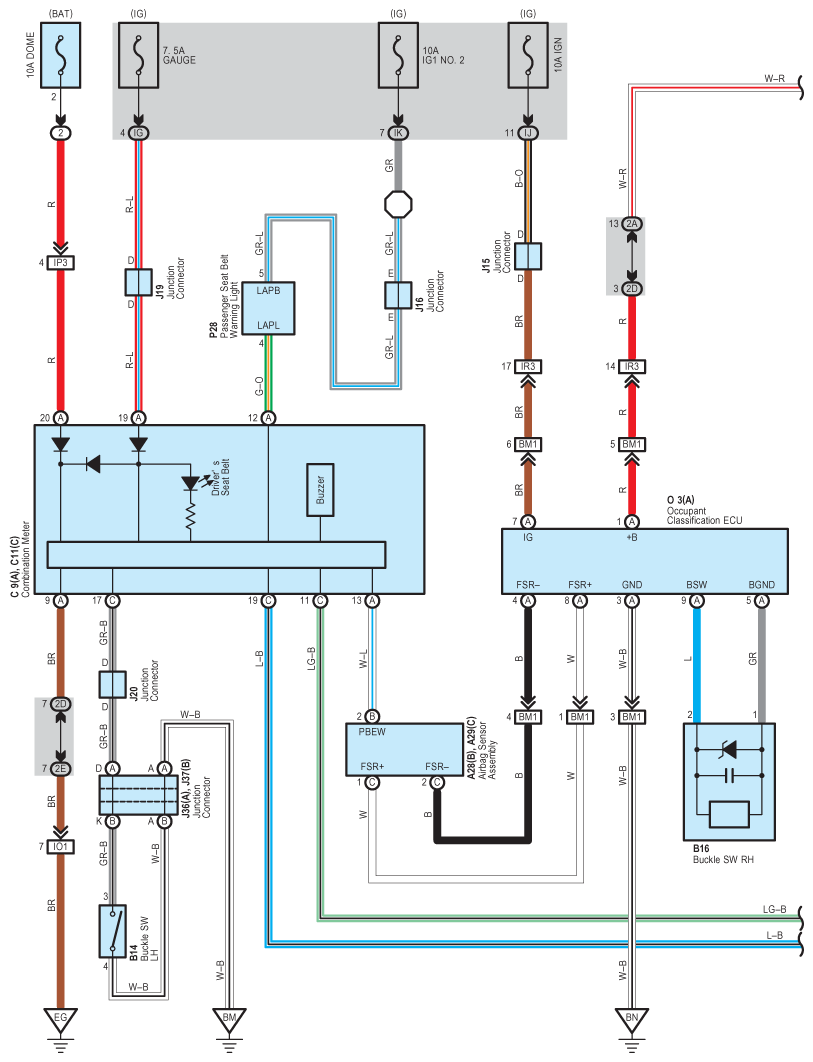

Fig 1: Key Reminder And Seat Belt Warning System Wiring Diagram (1 Of 2)
G08917588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

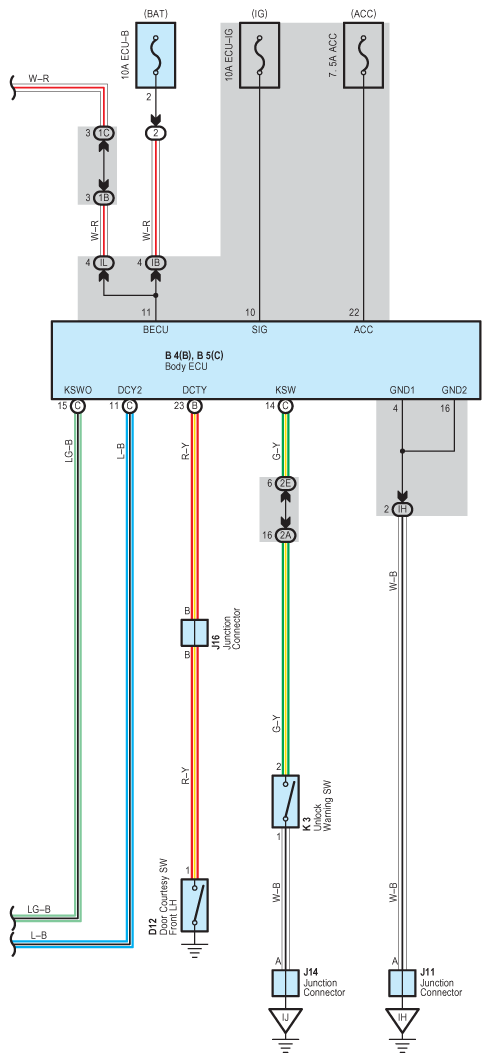

Fig 2: Key Reminder And Seat Belt Warning System Wiring Diagram (2 Of 2)
G08917589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
