Home >> Lexus >> 2007 >> GX 470 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Garage Door Opener >> Notes

Garage Door Opener: Notes

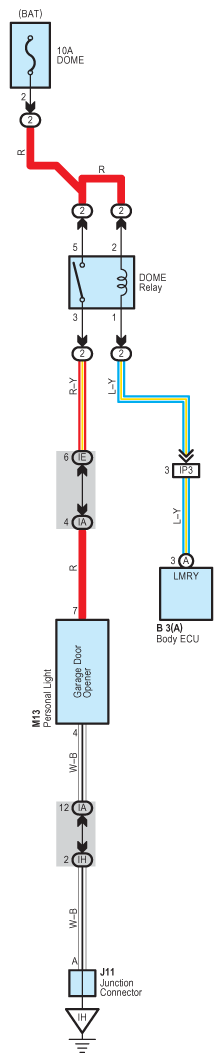

Fig 1: Garage Door Opener System Wiring Diagram

G08917591

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
