Front Wiper with Rain Sensor and Washer: Notes

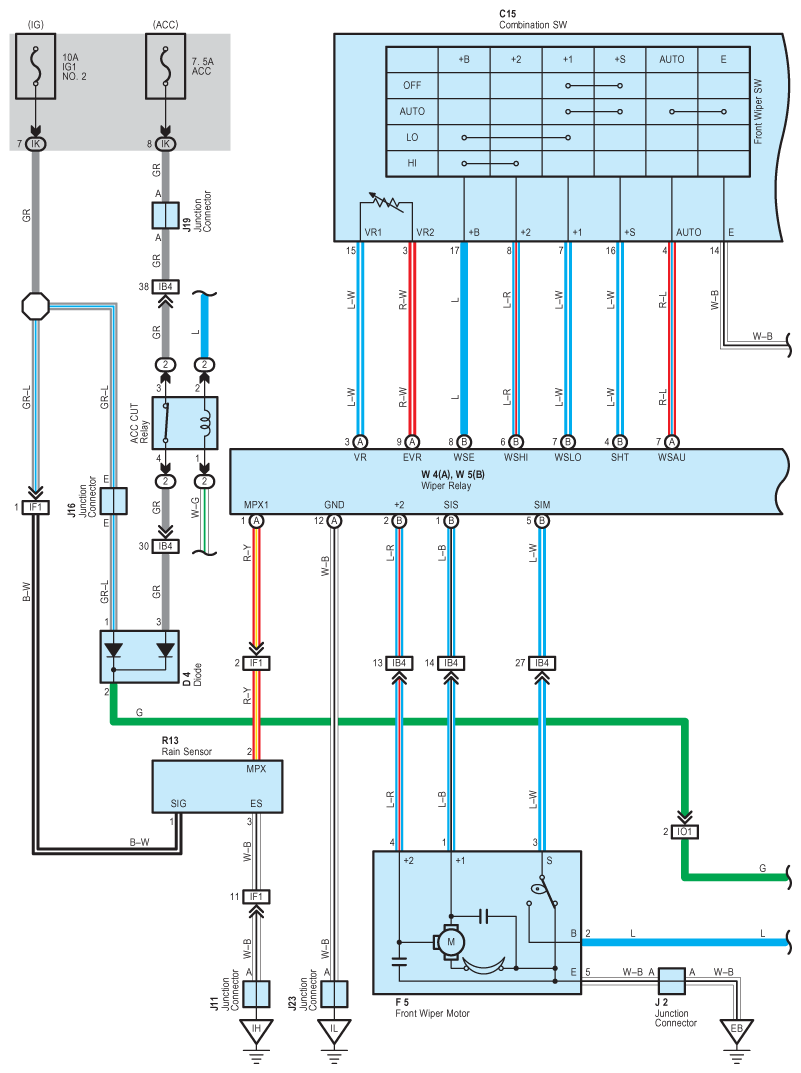

Fig 1: Front Wiper With Rain Sensor And Washer System Wiring Diagram (1 Of 4)
G08917592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

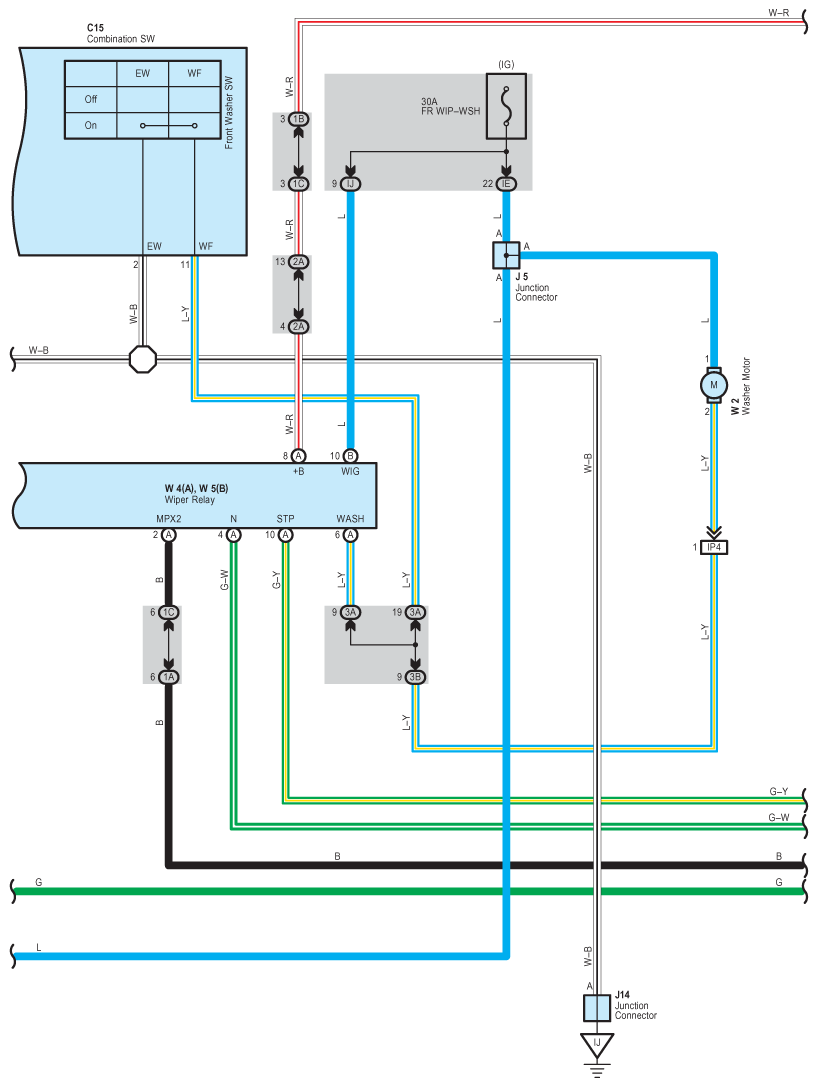

Fig 2: Front Wiper With Rain Sensor And Washer System Wiring Diagram (2 Of 4)
G08917593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Front Wiper With Rain Sensor And Washer System Wiring Diagram (3 Of 4)
G08917594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Front Wiper With Rain Sensor And Washer System Wiring Diagram (4 Of 4)
G08917595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
