Cigarette Lighter and Power Outlet - 12V: Notes

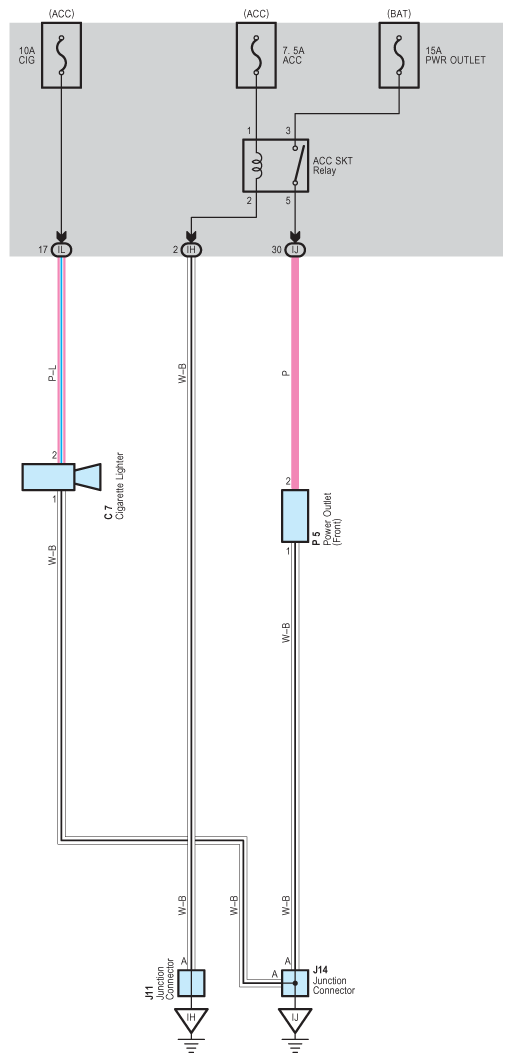

Fig 1: Cigarette Lighter And Power Outlet - 12 V System Wiring Diagram

G08917661

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
