Roof Headlining: Components

Fig 1: Identifying Roof Headlining (1 Of 4)
G05267151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Roof Headlining (2 Of 4)
G05267152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

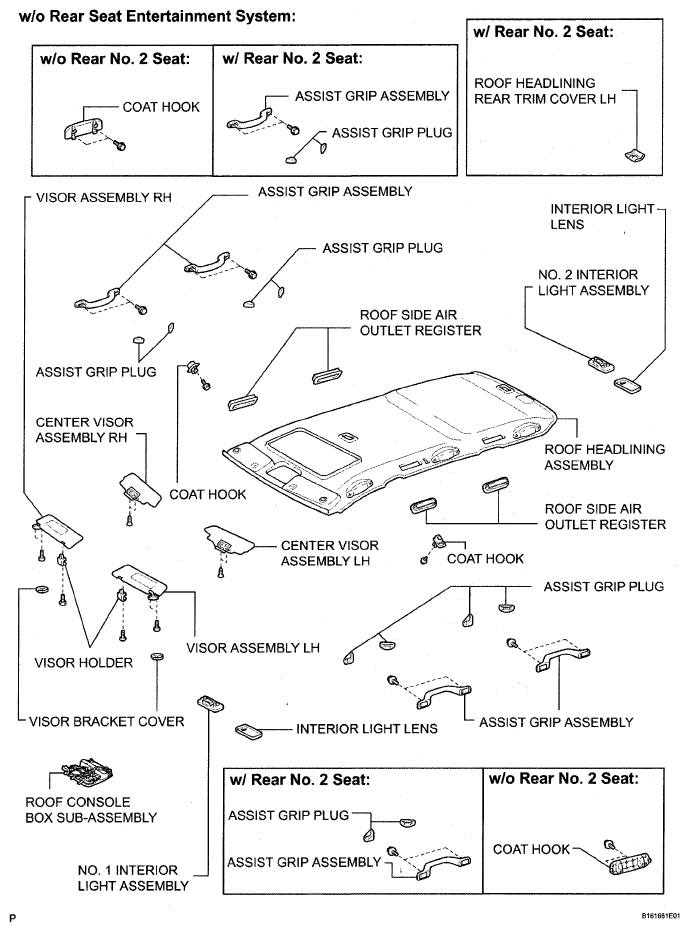

Fig 3: Identifying Roof Headlining (3 Of 4)
G05267153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

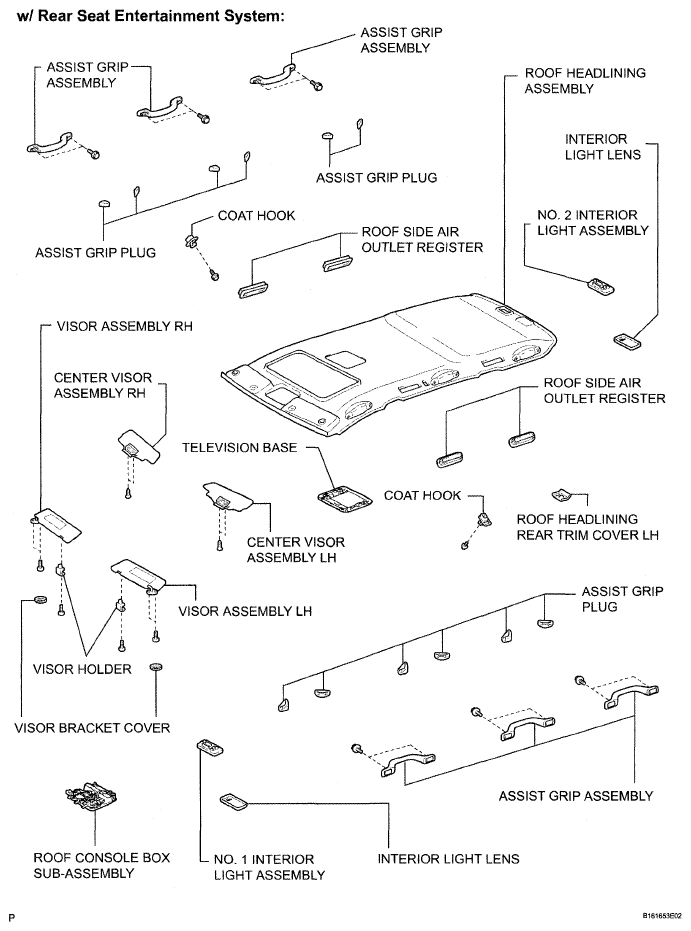

Fig 4: Identifying Roof Headlining (4 Of 4)
G05267154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
