Home >> Lexus >> 2007 >> GX 470 >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior >> Rear Door Window Frame Moulding >> Components

Rear Door Window Frame Moulding: Components

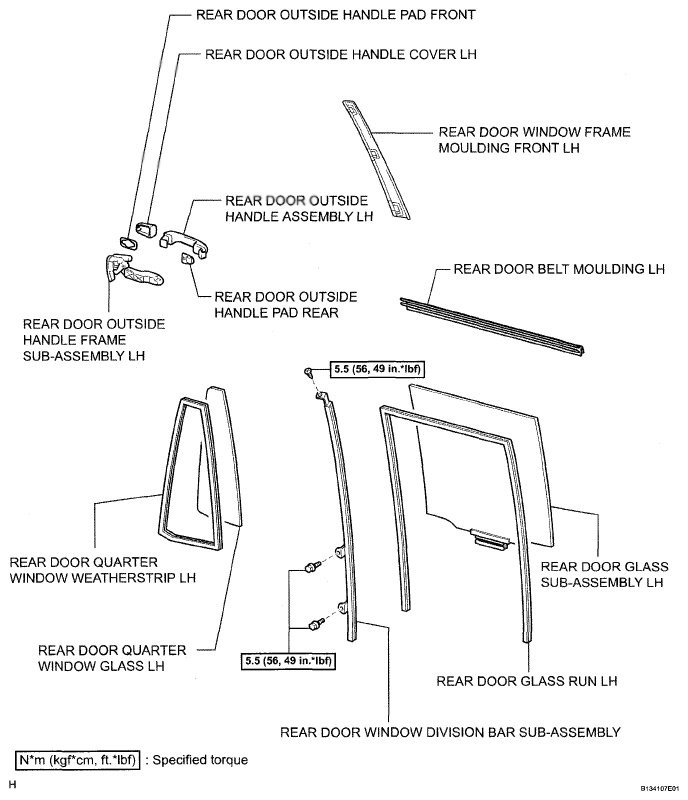

Fig 1: Rear Door Window Frame Moulding Replacement Components With Torque Specifications

G05267137

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
