Rear Bumper: Components

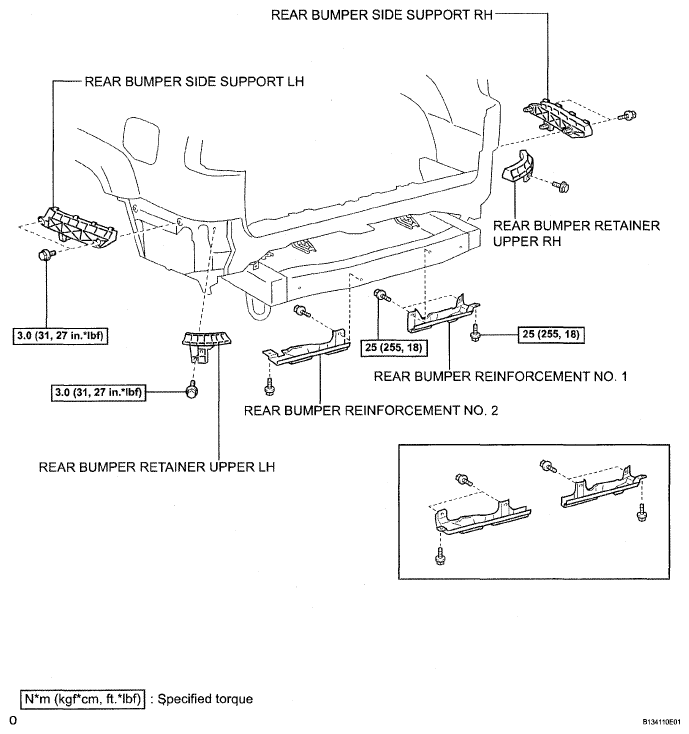

Fig 1: Rear Bumper Replacement Components With Torque Specifications (1 Of 2)
G05267074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

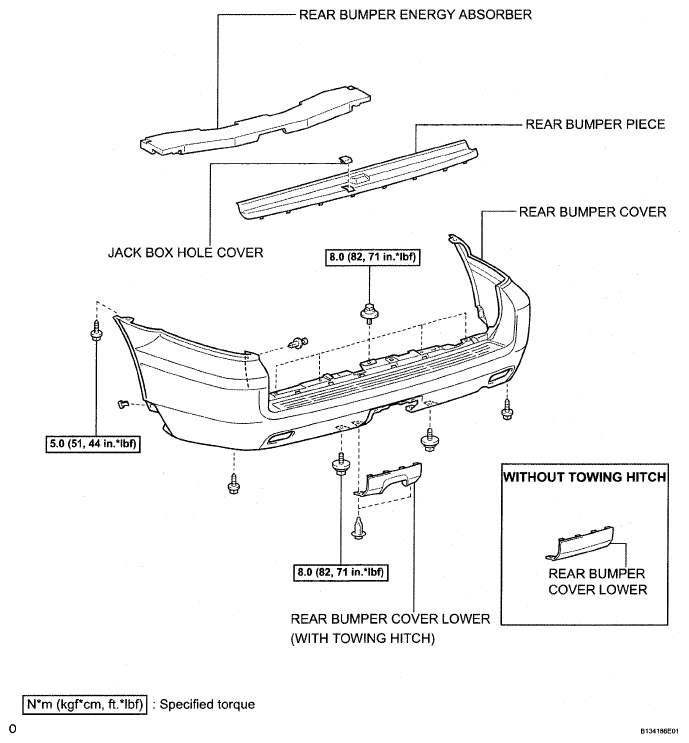

Fig 2: Rear Bumper Replacement Components With Torque Specifications (2 Of 2)
G05267075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
