Quarter Belt Moulding: Components

Fig 1: Quarter Belt Moulding Replacement Components With Torque Specifications (1 Of 5)
G05267091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Quarter Belt Moulding Replacement Components With Torque Specifications (2 Of 5)
G05267092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Quarter Belt Moulding Replacement Components With Torque Specifications (3 Of 5)
G05267093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Quarter Belt Moulding Replacement Components With Torque Specifications (4 Of 5)
G05267094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

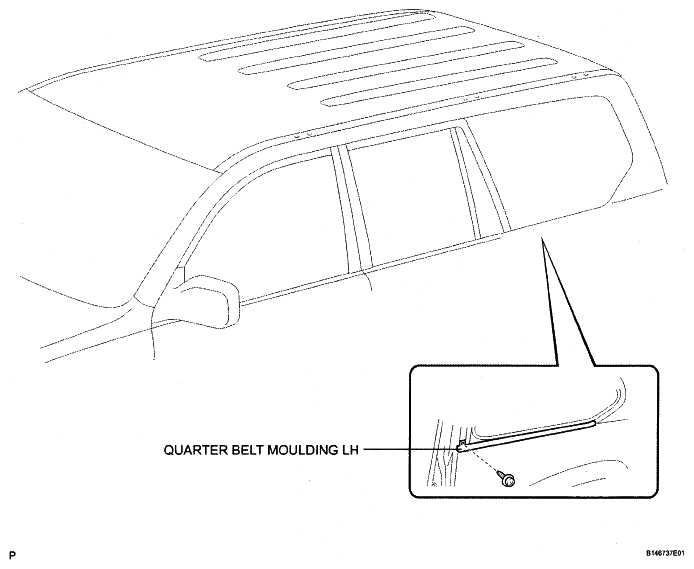

Fig 5: Quarter Belt Moulding Replacement Components With Torque Specifications (5 Of 5)
G05267095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
