Home >> Lexus >> 2007 >> GX 470 >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior >> Front Door Window Frame Moulding >> Components

Front Door Window Frame Moulding: Components

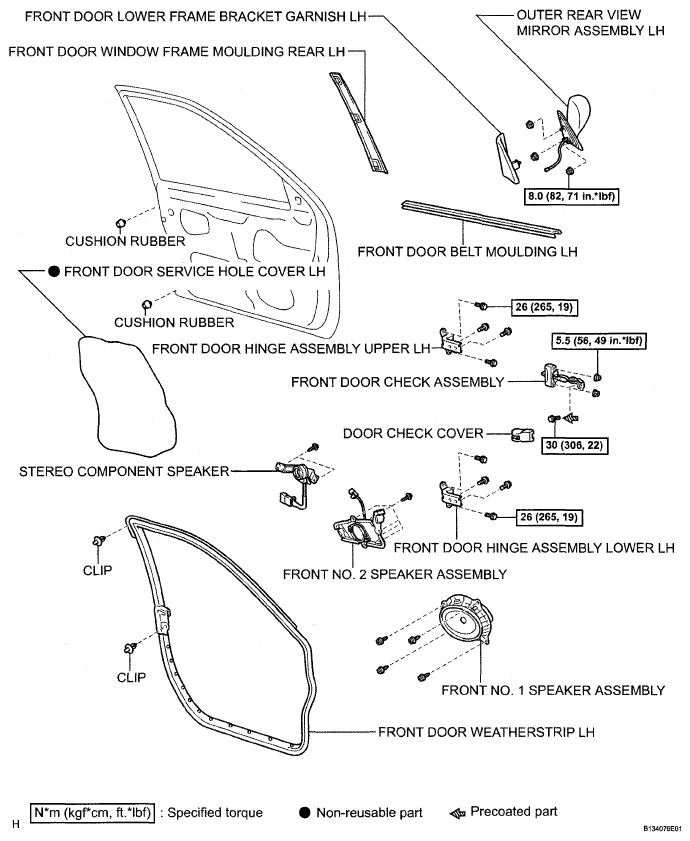

Fig 1: Front Door Window Frame Moulding Replacement Components With Torque Specifications

G05267134

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
