Back Door Garnish: Components

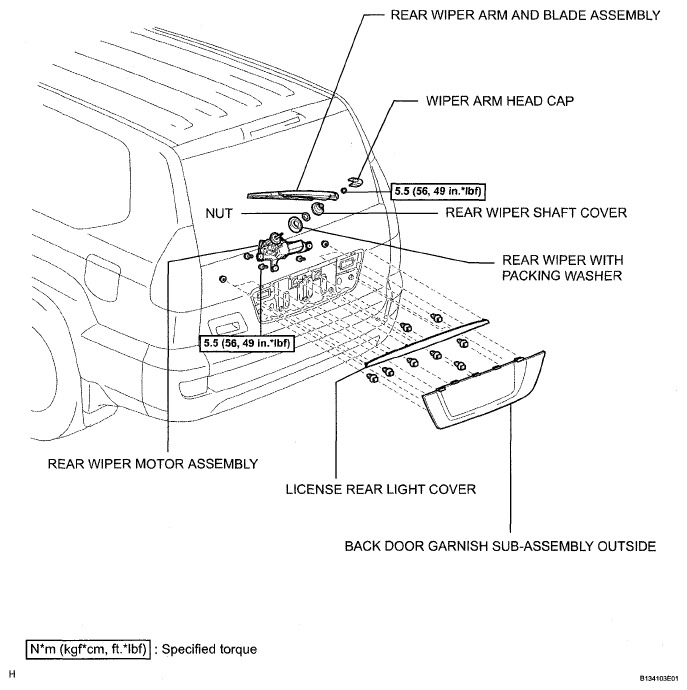

Fig 1: Back Door Garnish Replacement Components With Torque Specifications (1 Of 3)
G05267144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

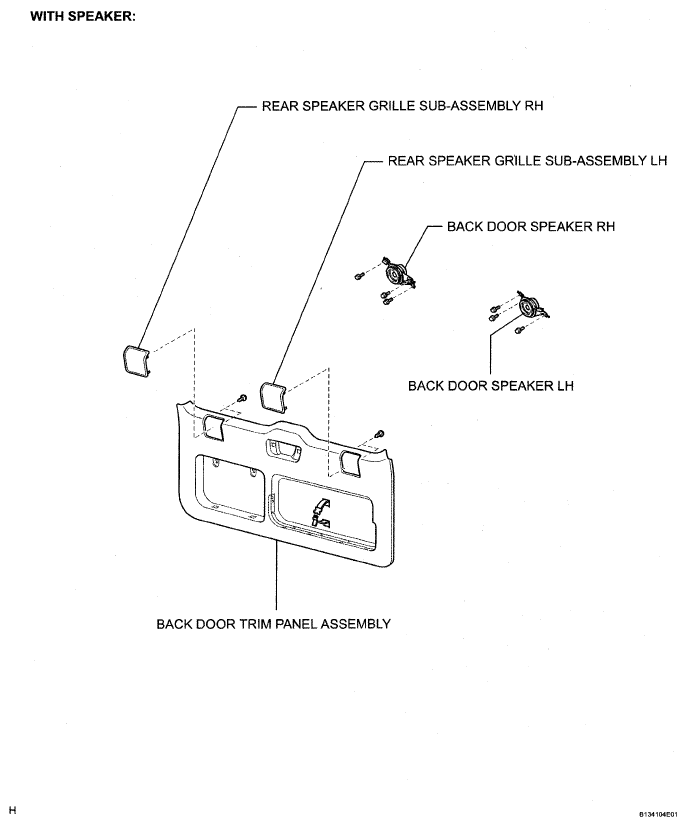

Fig 2: Back Door Garnish Replacement Components With Torque Specifications (2 Of 3)
G05267145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

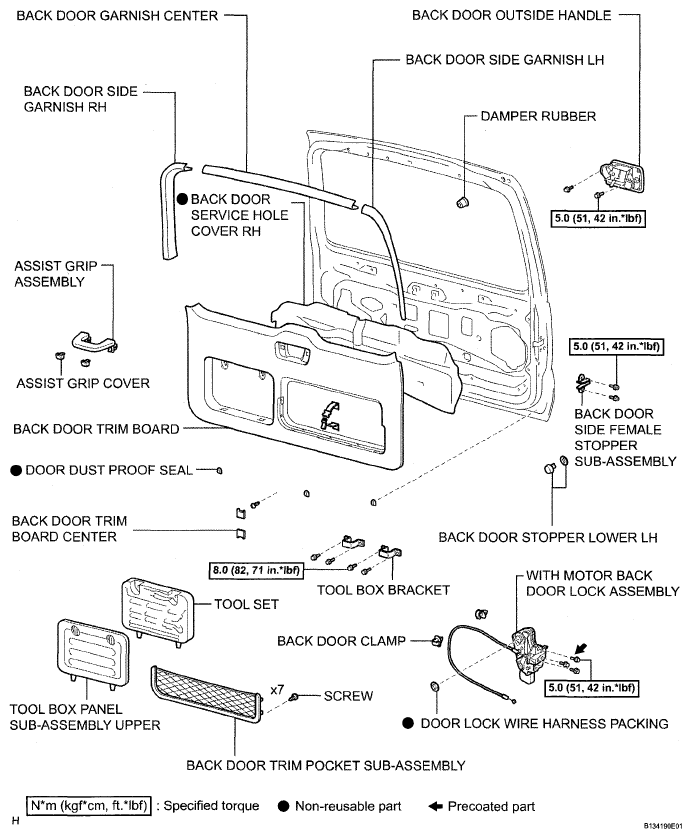

Fig 3: Back Door Garnish Replacement Components With Torque Specifications (3 Of 3)
G05267146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
