Parts Location

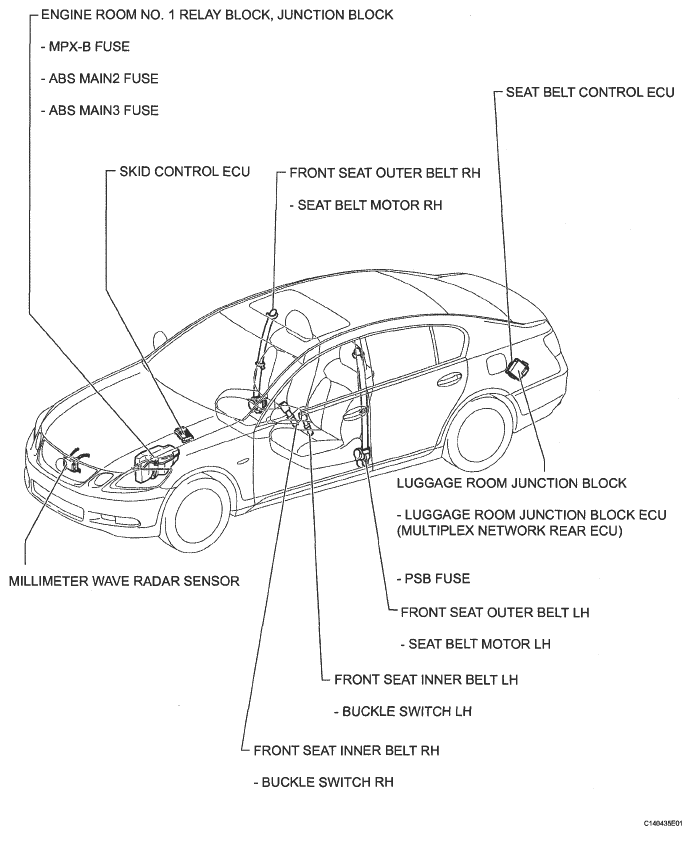

Fig 1: Identifying Pre-Collision System Parts Location (1 Of 2)
G05313996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

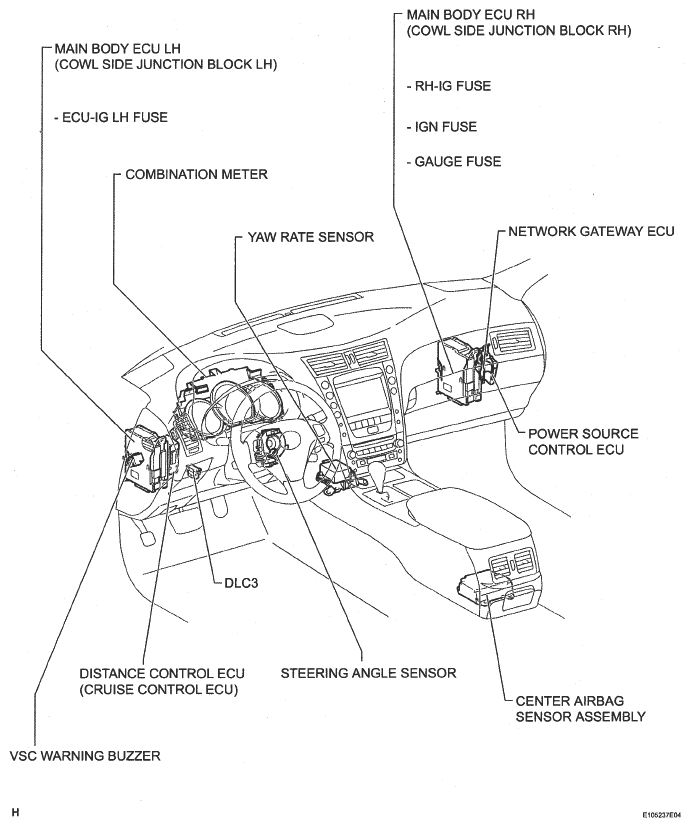

Fig 2: Identifying Pre-Collision System Parts Location (2 Of 2)
G05313997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
