Electric Inverter Compressor: Components

Fig 1: Electric Inverter Compressor With Torque Specification (1 Of 2)
G05307005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

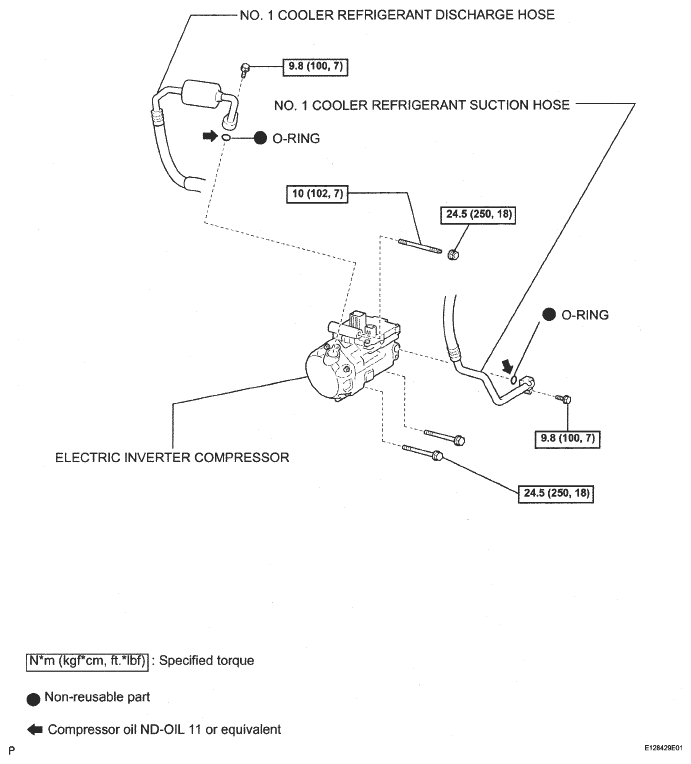

Fig 2: Electric Inverter Compressor With Torque Specification (2 Of 2)
G05307006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
