Blower Unit: Components

Fig 1: Blower Unit With Torque Specification (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

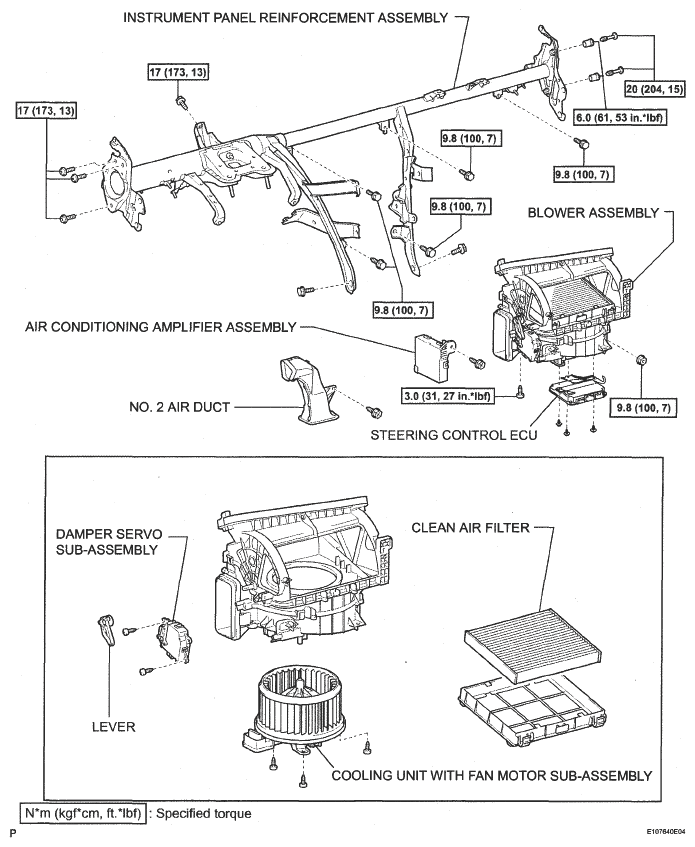

Fig 2: Blower Unit With Torque Specification (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Blower Unit With Torque Specification (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Blower Unit With Torque Specification (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Blower Unit With Torque Specification (5 Of 7)

Fig 6: Blower Unit With Torque Specification (6 Of 7)

Fig 7: Blower Unit With Torque Specification (7 Of 7)
