Air Conditioning Unit: Components

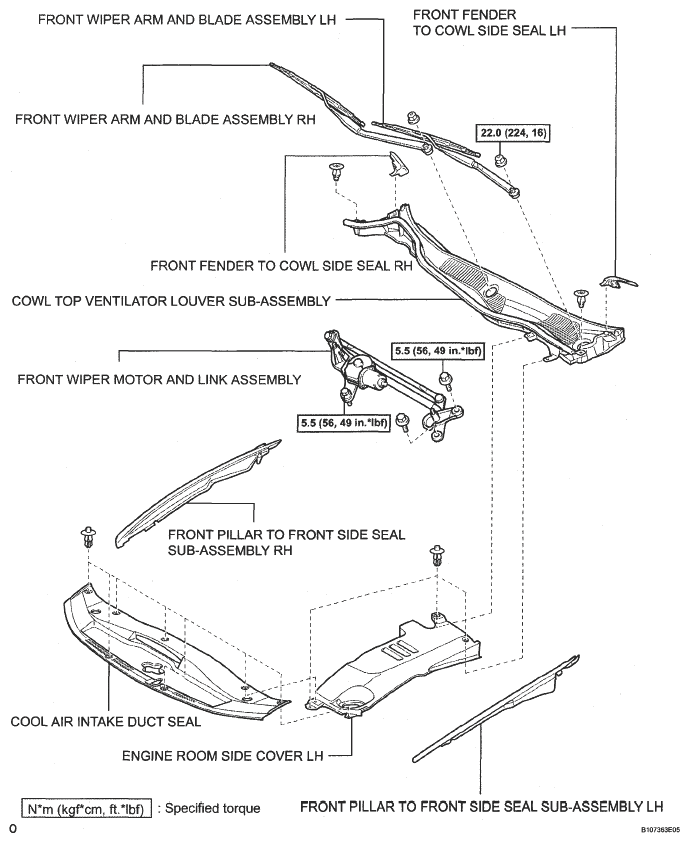

Fig 1: Air Conditioning Unit With Torque Specification (1 Of 8)
G05306916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

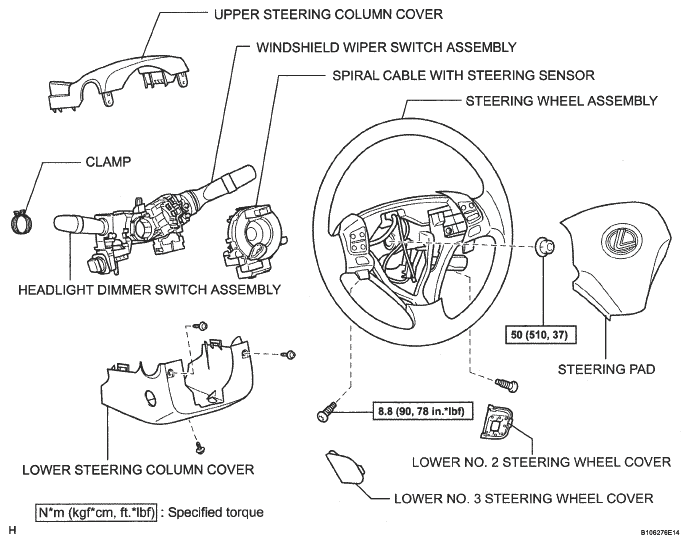

Fig 2: Air Conditioning Unit With Torque Specification (2 Of 8)
G05306917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

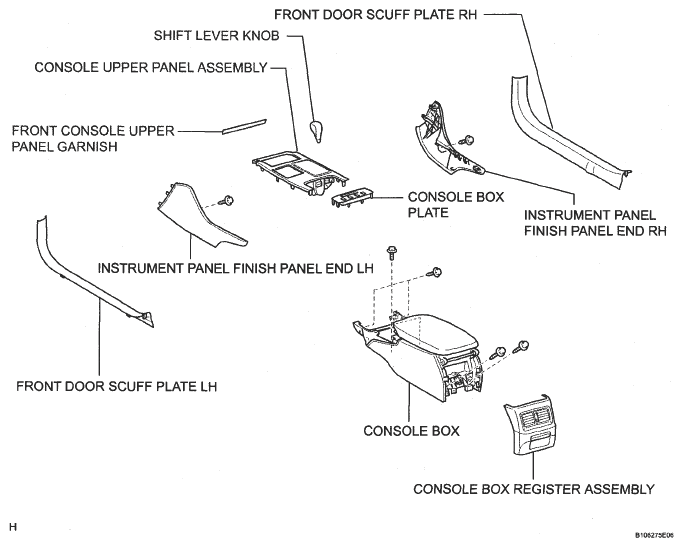

Fig 3: Blower Unit With Torque Specification (3 Of 7)
G05306918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

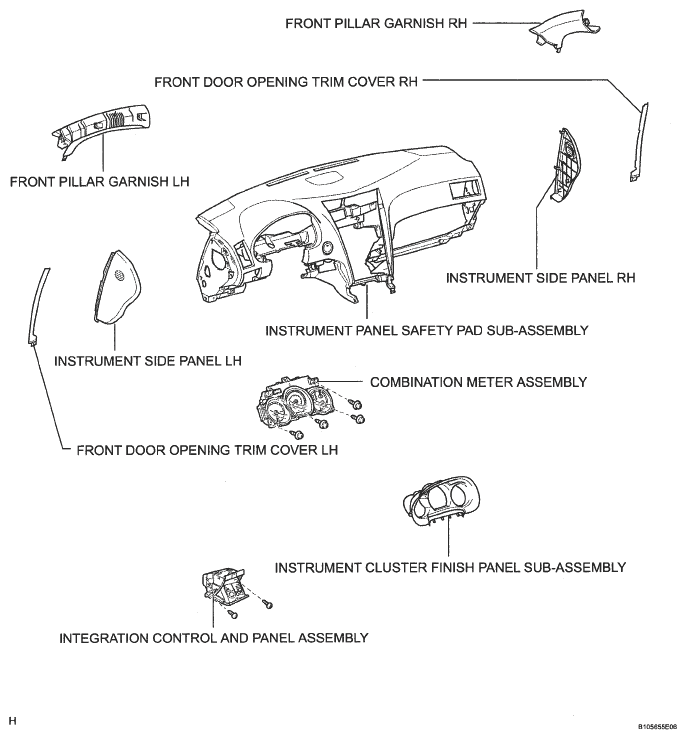

Fig 4: Air Conditioning Unit With Torque Specification (4 Of 8)
G05306919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

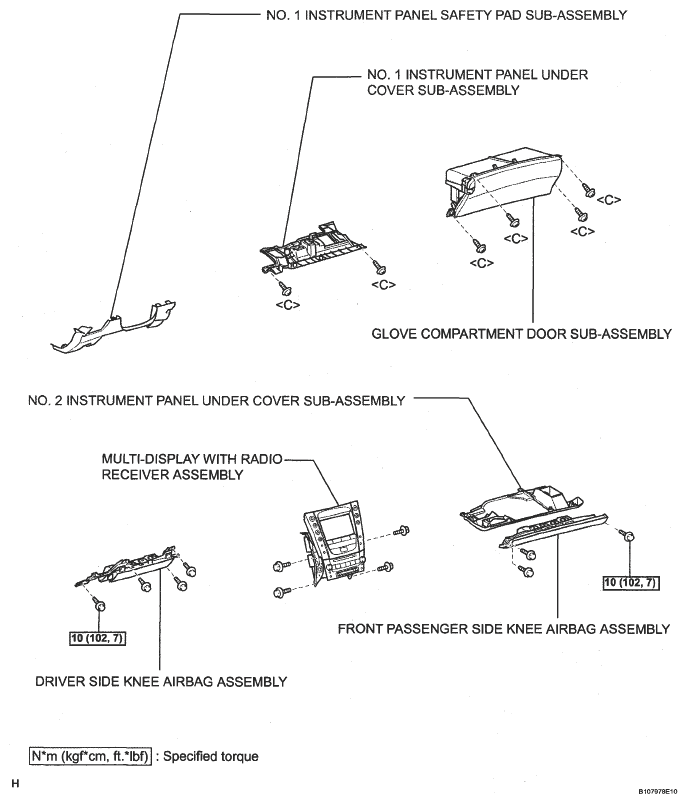

Fig 5: Air Conditioning Unit With Torque Specification (5 Of 8)
G05306920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

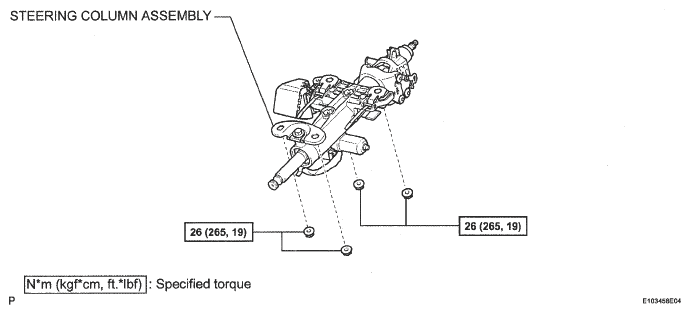

Fig 6: Air Conditioning Unit With Torque Specification (6 Of 8)
G05306921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

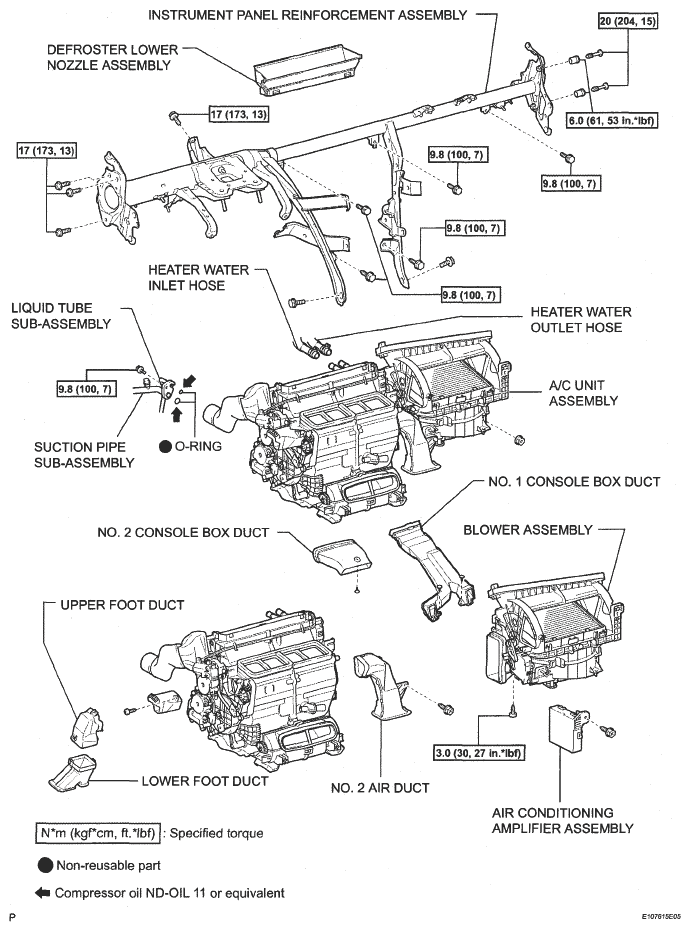

Fig 7: Air Conditioning Unit With Torque Specification (7 Of 8)
G05306922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

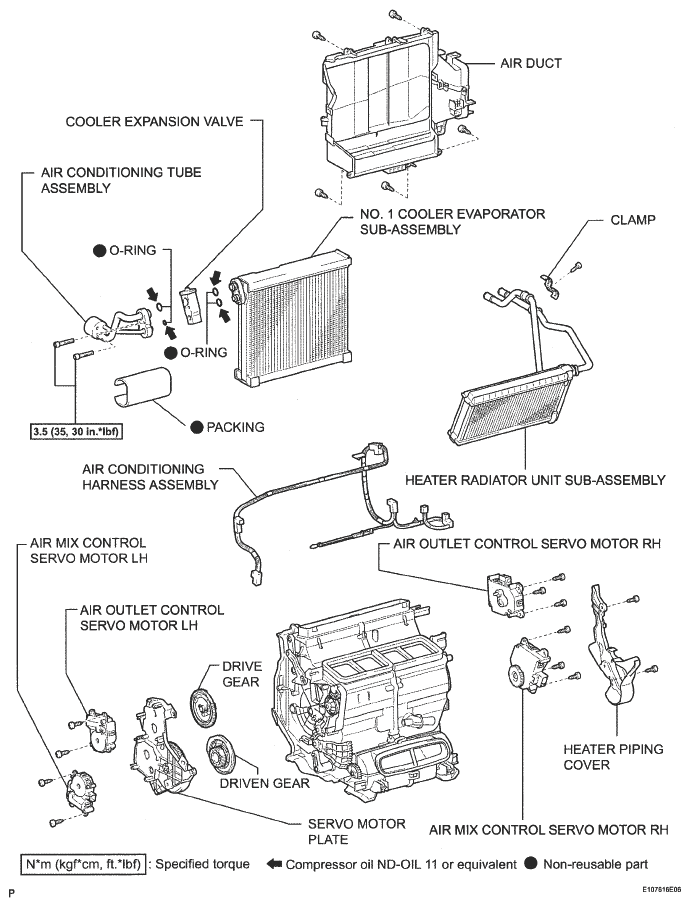

Fig 8: Air Conditioning Unit With Torque Specification (8 Of 8)
G05306923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
