DTC B2287 LIN Communication Master Malfunction: Description

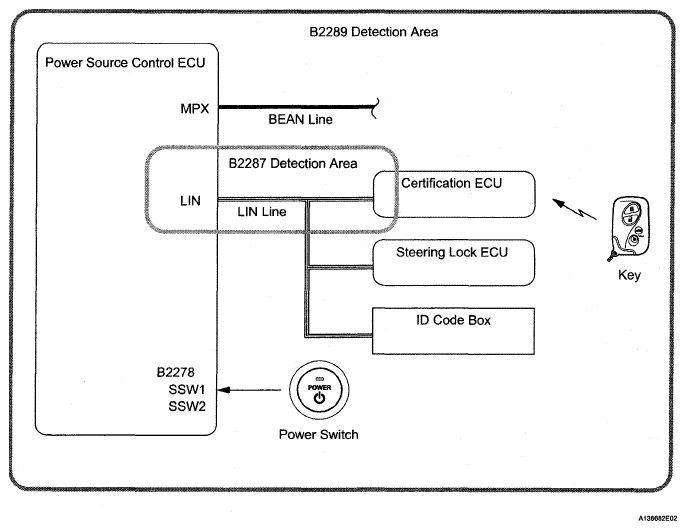

This DTC is output when: 1) any other DTC is set in the power source control ECU; or 2) the wire harness between the power source control ECU and the certification ECU is open or shorted.
DTC DETECTION CONDITION CHART
| DTC No. | DTC Detection Condition | Trouble Area |
|---|---|---|
| B2287 | Communication or communication line is abnormal between power source control ECU and certification ECU |
|
