Parking Assist (Intuitive Parking Assist): Notes

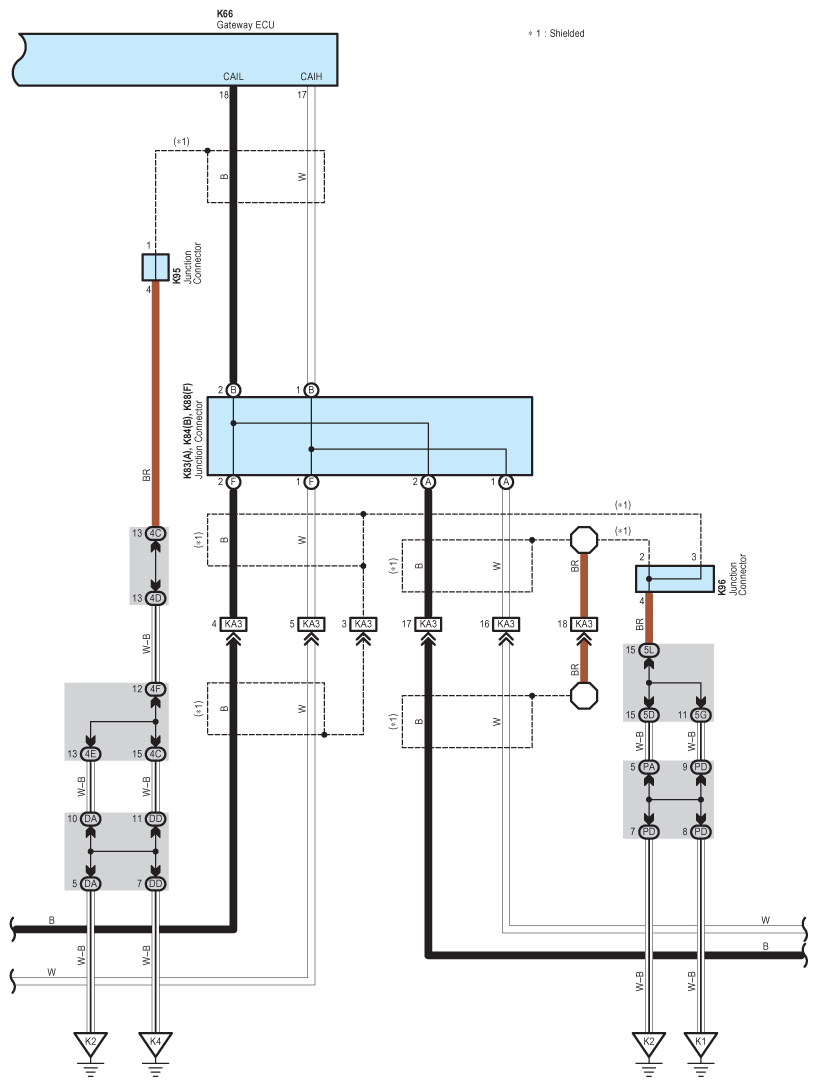

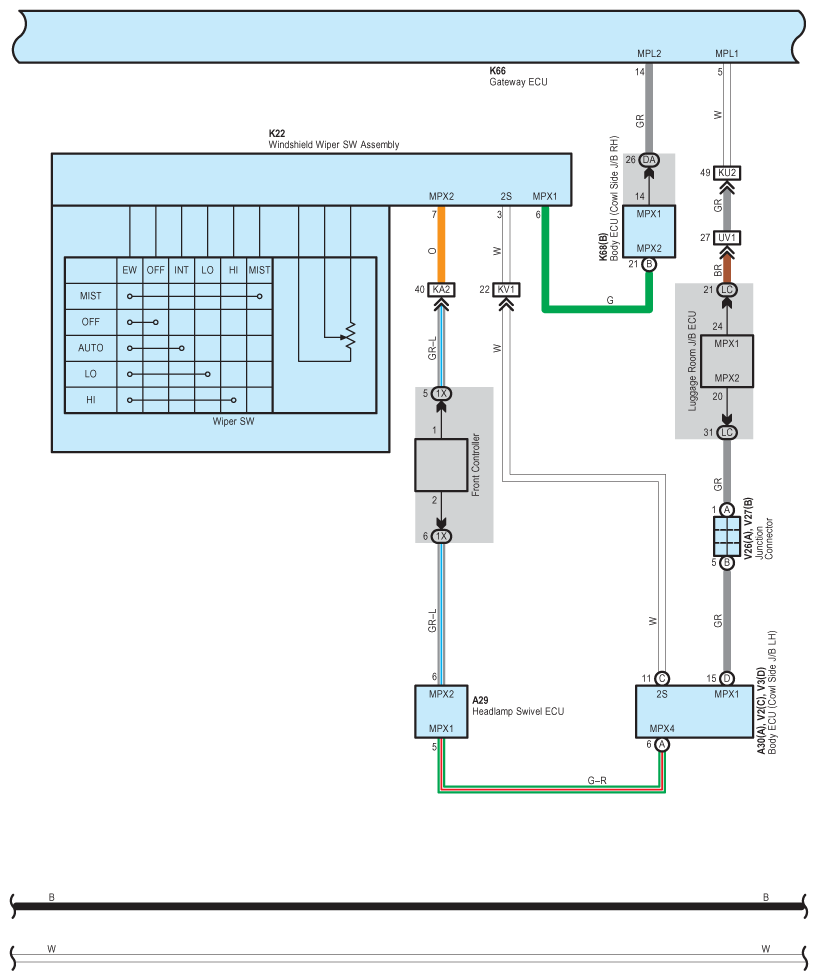

Fig 1: Parking Assist (Intuitive Parking Assist) Wiring Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

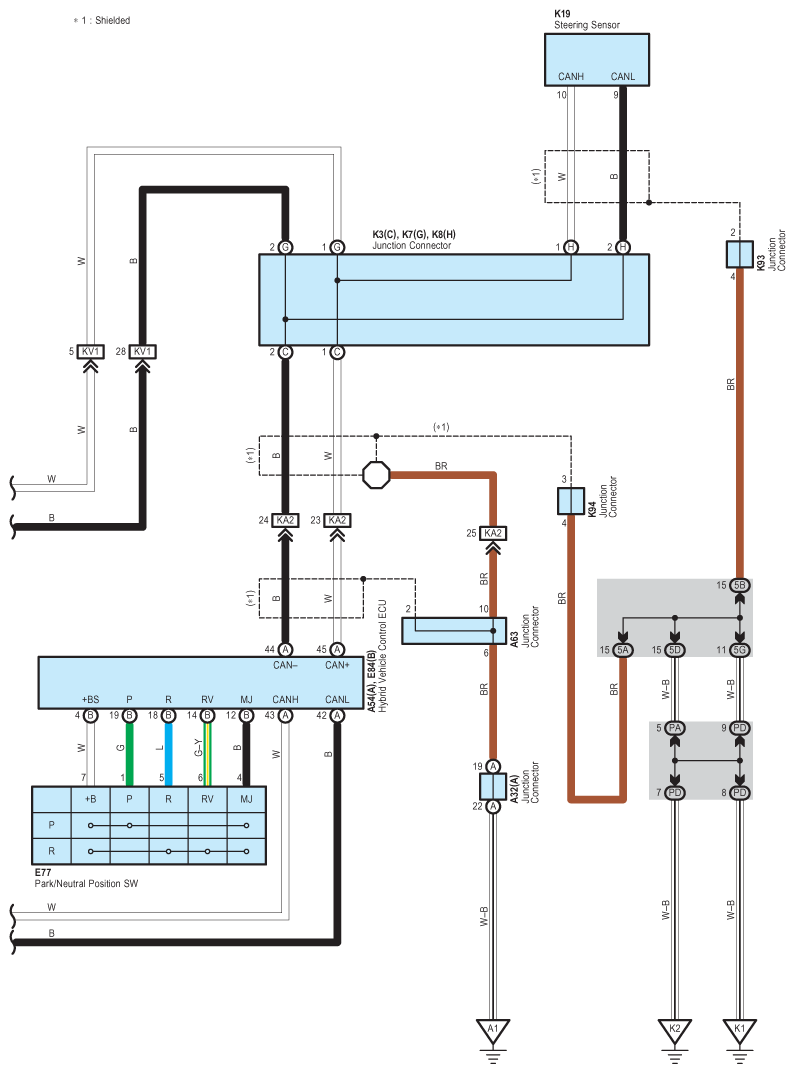

Fig 2: Parking Assist (Intuitive Parking Assist) Wiring Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

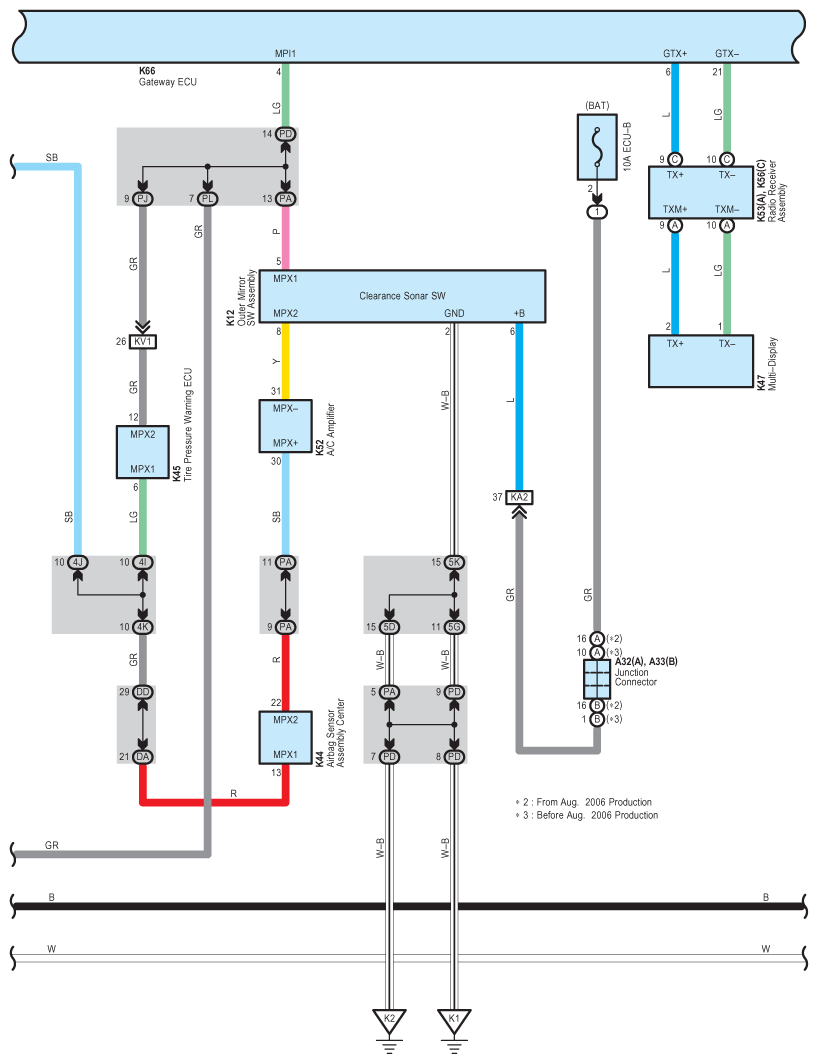

Fig 3: Parking Assist (Intuitive Parking Assist) Wiring Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

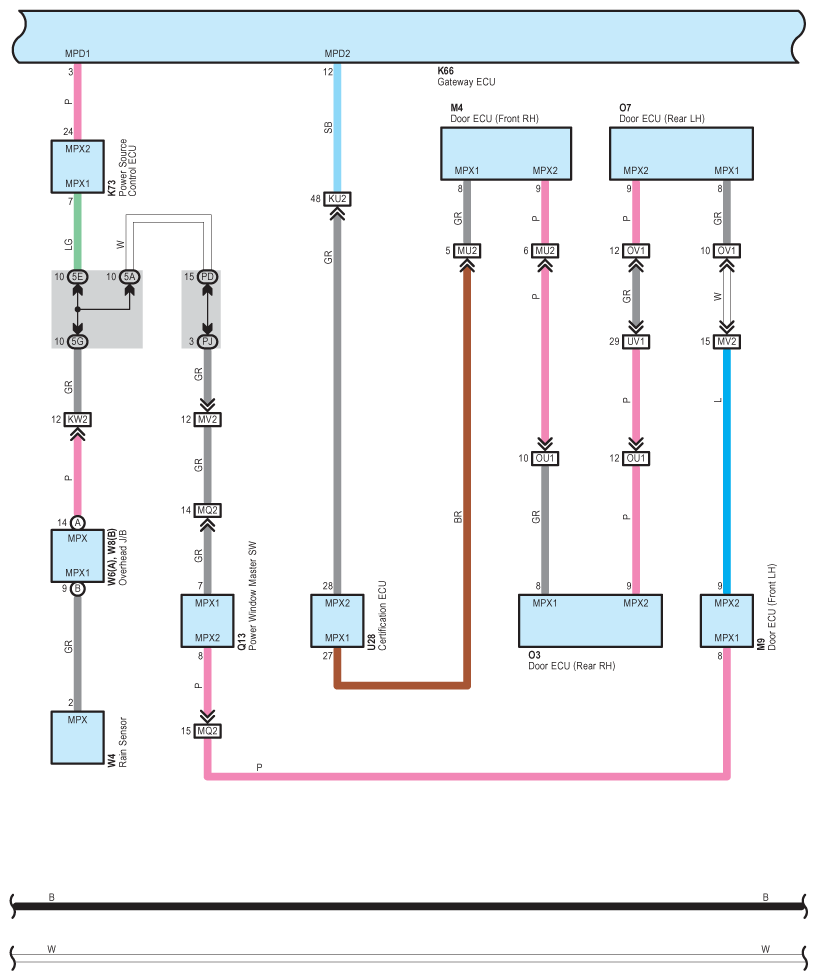

Fig 4: Parking Assist (Intuitive Parking Assist) Wiring Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

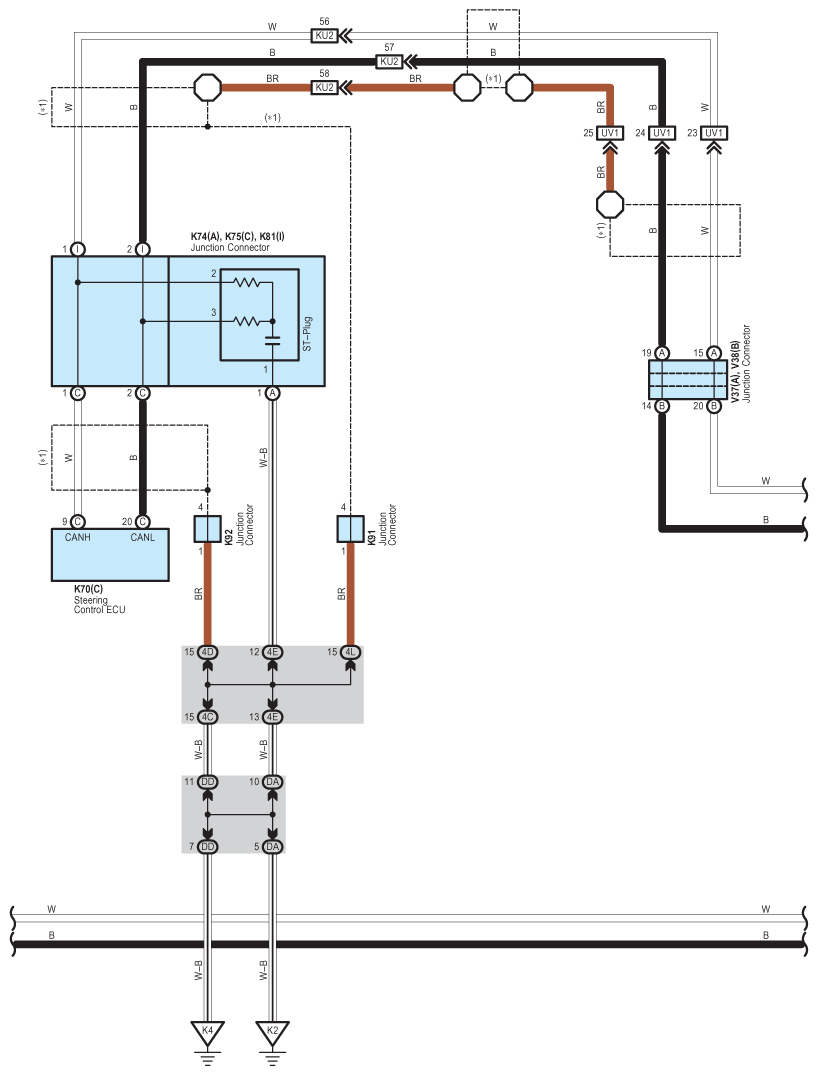

Fig 5: Parking Assist (Intuitive Parking Assist) Wiring Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

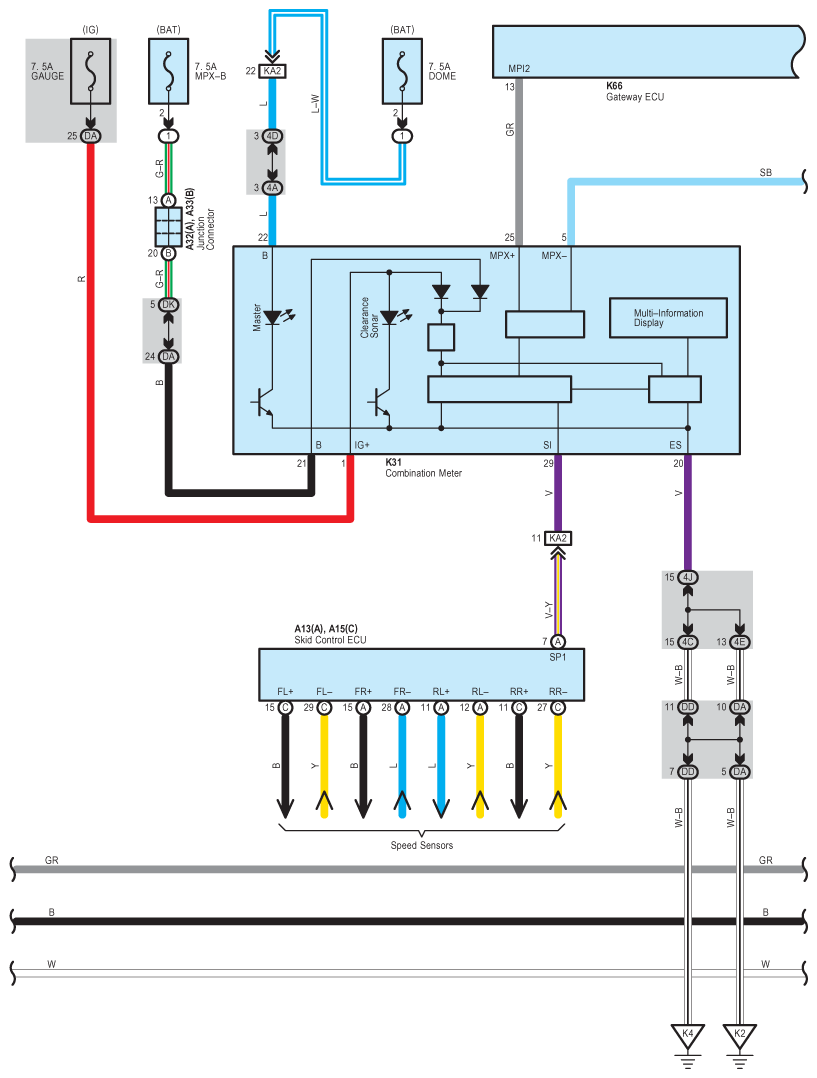

Fig 6: Parking Assist (Intuitive Parking Assist) Wiring Diagram (6 Of 9)

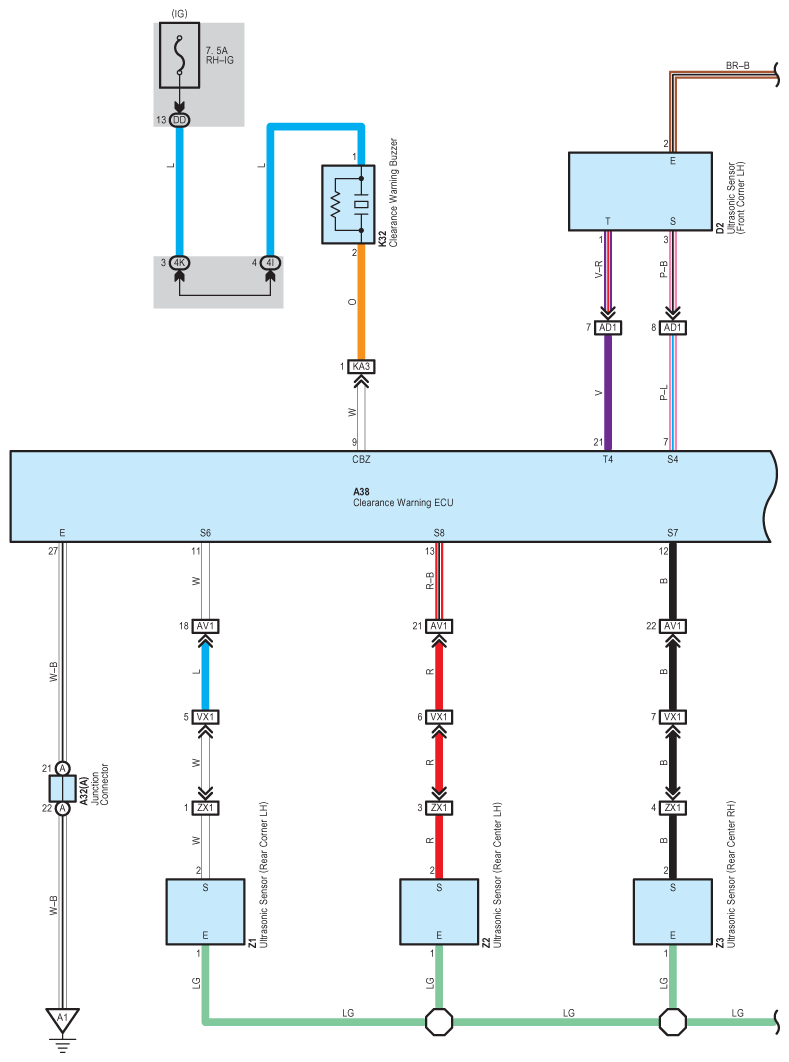

Fig 7: Parking Assist (Intuitive Parking Assist) Wiring Diagram (7 Of 9)

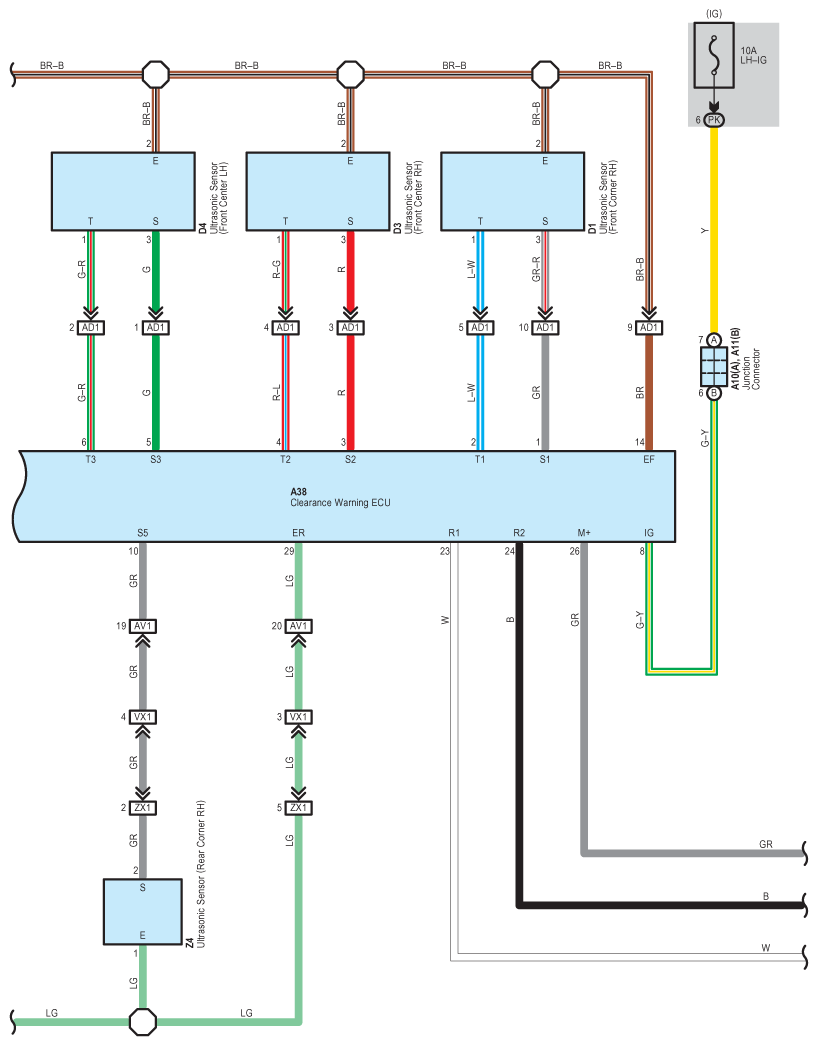

Fig 8: Parking Assist (Intuitive Parking Assist) Wiring Diagram (8 Of 9)

Fig 9: Parking Assist (Intuitive Parking Assist) Wiring Diagram (9 Of 9)
