Parts Location

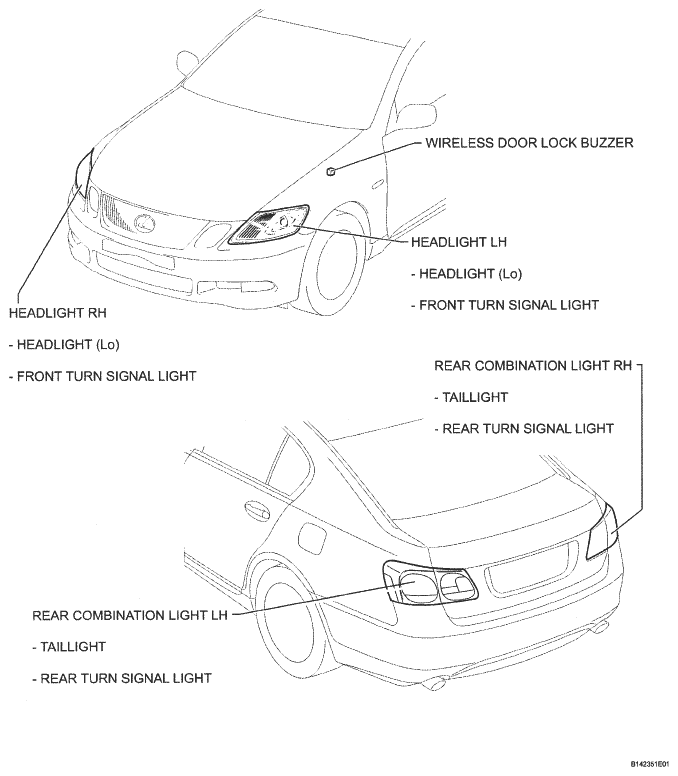

Fig 1: Identifying Wireless Door Lock Control System Components Location (1 Of 5)
G05310960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

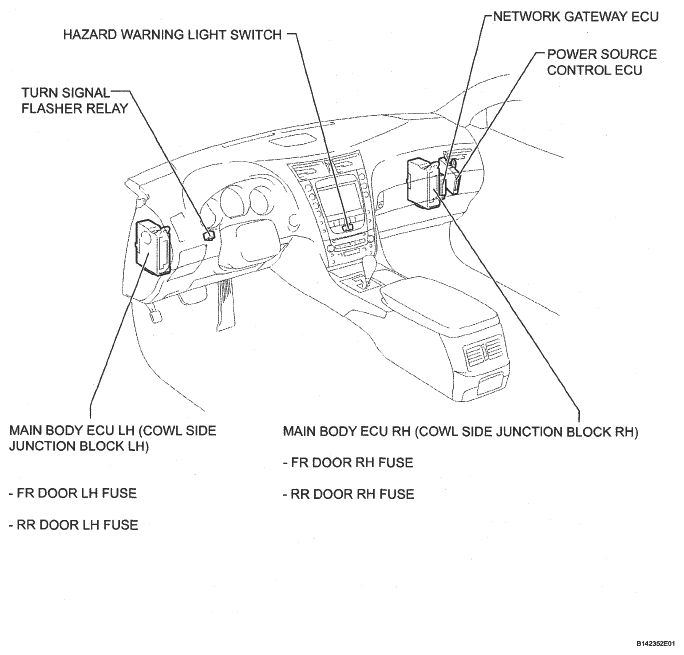

Fig 2: Identifying Wireless Door Lock Control System Components Location (2 Of 5)
G05310961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

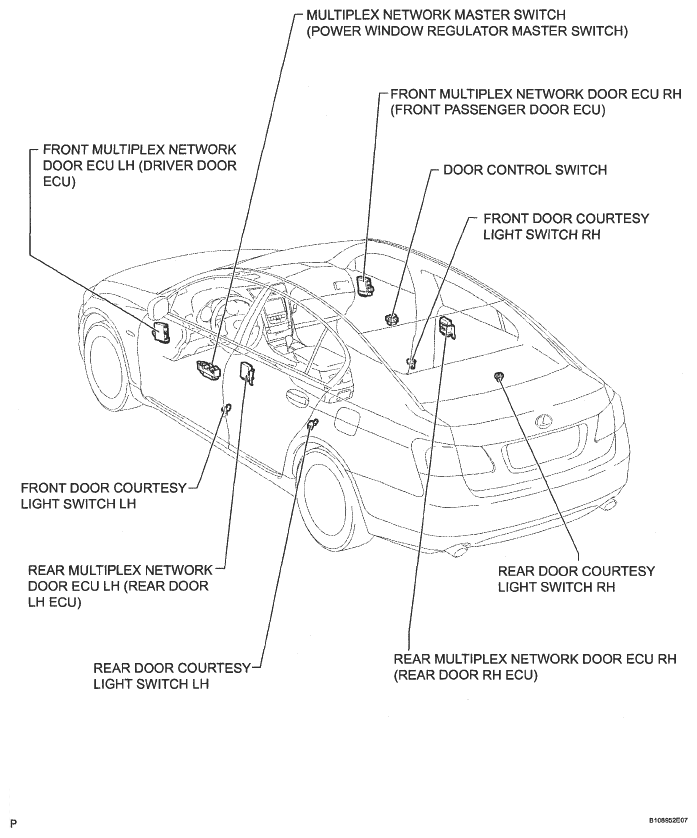

Fig 3: Identifying Wireless Door Lock Control System Components Location (3 Of 5)
G05310962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

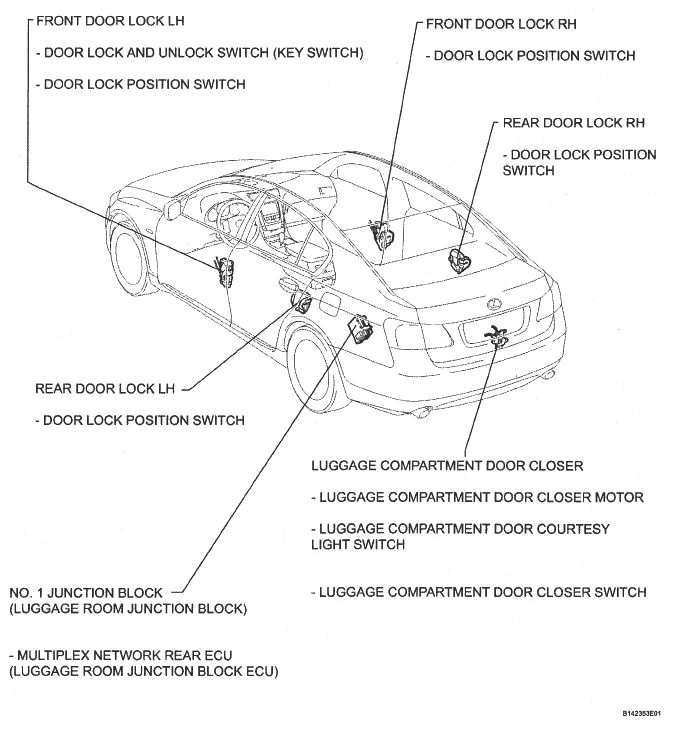

Fig 4: Identifying Wireless Door Lock Control System Components Location (4 Of 5)
G05310963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

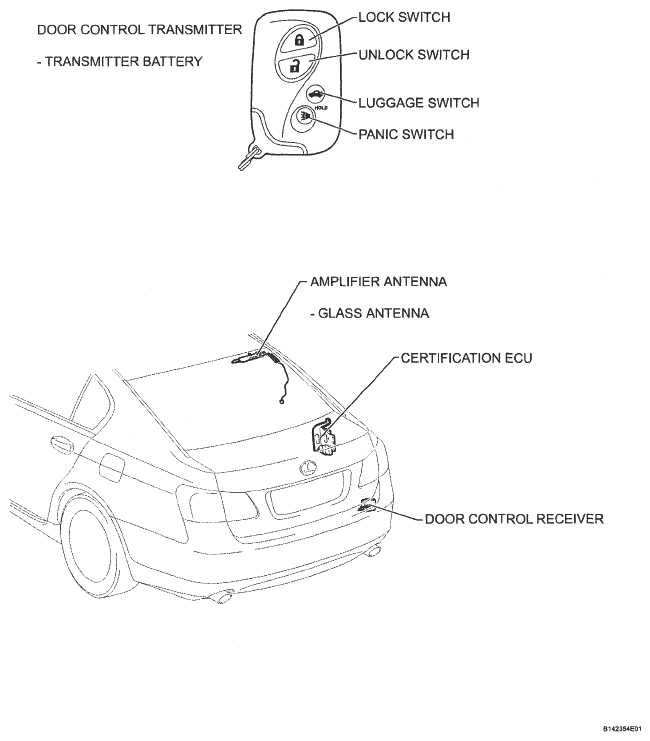

Fig 5: Identifying Wireless Door Lock Control System Components Location (5 Of 5)
G05310964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
