Rear Door RH Entry Unlock Function does not Operate: Wiring Diagram

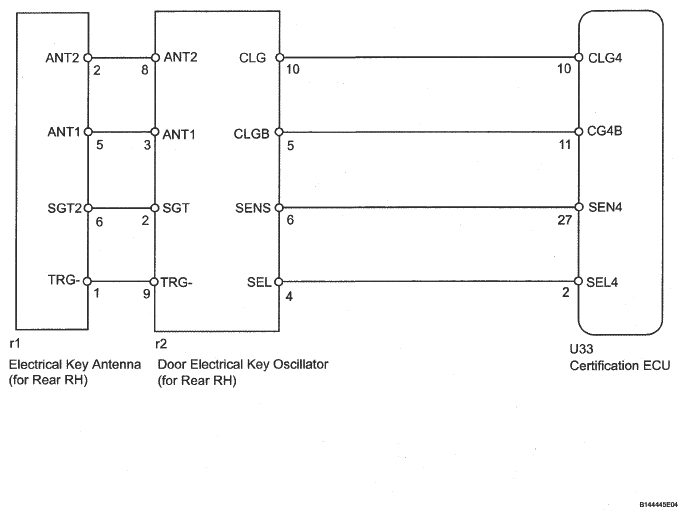

Fig 1: Rear Door RH Entry Unlock Function Does Not Operate - Wiring Diagram

G05311030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
