Key Luggage Compartment Lock-in Prevention Function does not Operate: Wiring Diagram

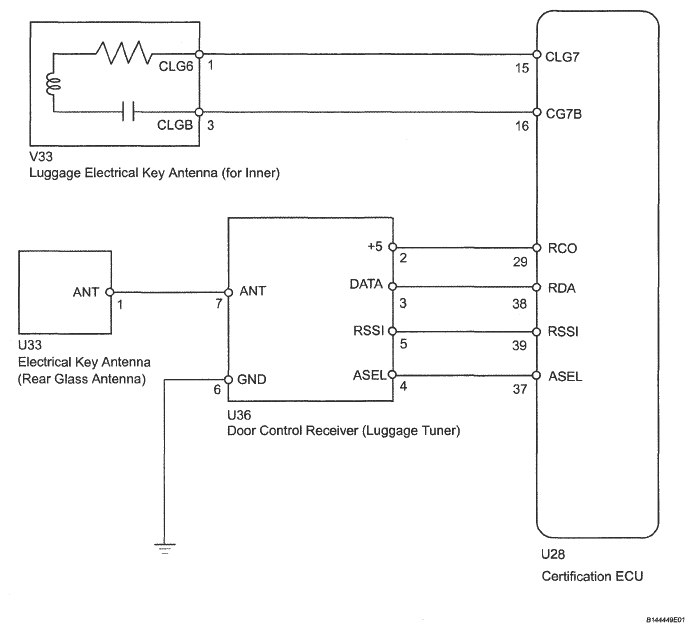

Fig 1: Key Luggage Compartment Lock-In Prevention Function Does Not Operate - Wiring Diagram
G05311059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
