Parts Location

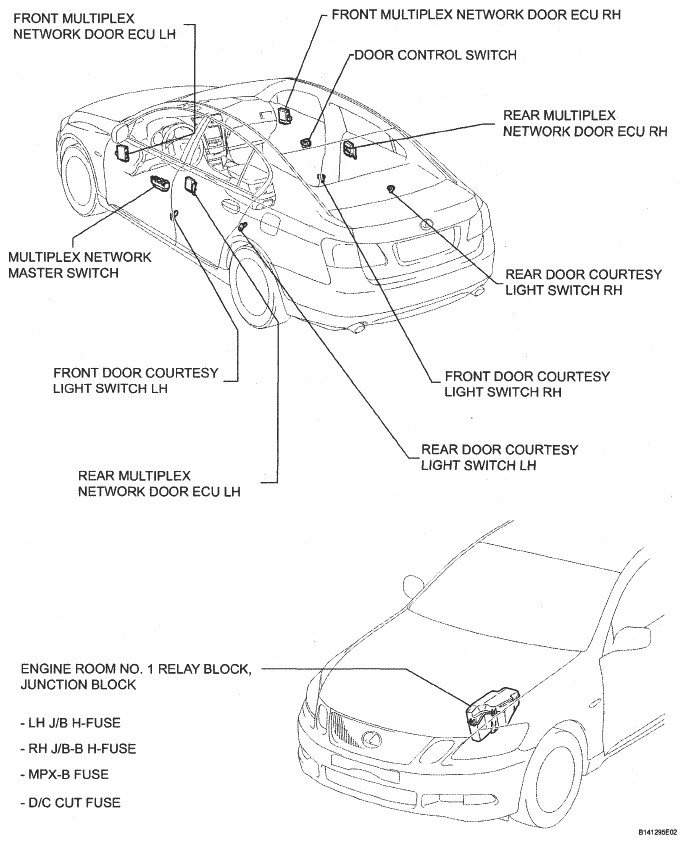

Fig 1: Identifying Power Door Lock Control System Components Location (1 Of 2)
G05310918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

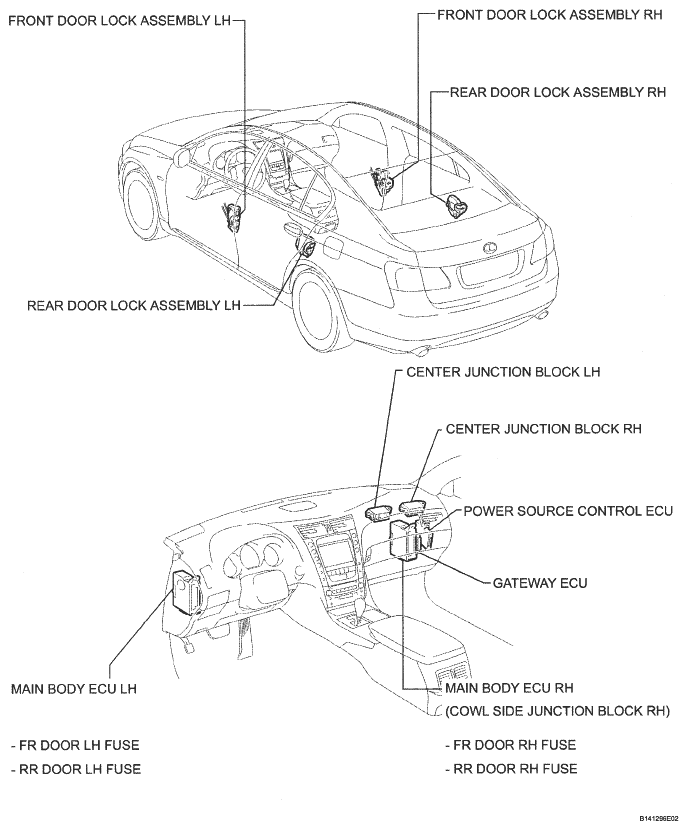

Fig 2: Identifying Power Door Lock Control System Components Location (2 Of 2)
G05310919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
