On-Vehicle Inspection

  1. INSPECT DOOR CONTROL SWITCH ASSEMBLY
    1. Measure the resistance of the switch.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

      Tester Connection Switch Condition Specified Condition
      2 (L) - 3 (E) Lock Below 1 Ω
      4 (UL) - 3 (E) Unlock Below 1 Ω
      2 (L) - 3 (E) Unlock 10 kΩ or higher
      4 (UL) - 3 (E) Lock 10 kΩ or higher

      If the result is not as specified, replace the switch assembly.

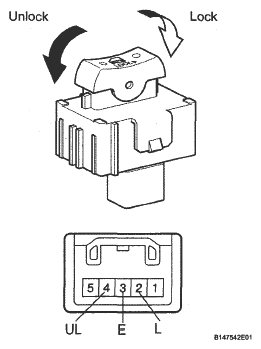

      Fig 1: Inspecting Door Control Switch Assembly
      G05310936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
