DTC P0500 Vehicle Speed Sensor Malfunction: Description

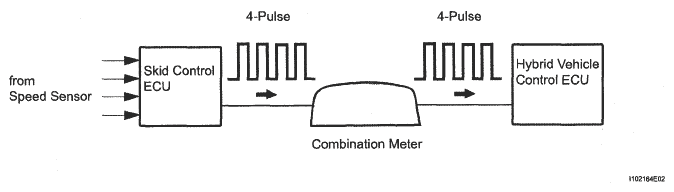

The speed sensor for the skid control ECU detects wheel speed and sends appropriate signals to the skid control ECU.
The skid control ECU converts these wheel speed signals into 4-pulse signals and outputs them to the hybrid vehicle control ECU via the combination meter.
The hybrid vehicle control ECU determines vehicle speed based on the frequency of these pulse signals.
DTC DETECTION CONDITION CHART
| DTC No. | DTC Detection Condition | Trouble Area |
|---|---|---|
| P0500 | This trouble code is output when a signal from vehicle speed sensor is cut for 1.4 sec. or more while cruise control is in operation |
|
