Inspection Procedure

1. Remove the MPX-B from the engine room No. 1 relay block.
2. Measure the resistance of the fuse.

   Standard resistance:

   Below 1 Ω

NG: REPLACE FUSE

OK: GO TO Next Step

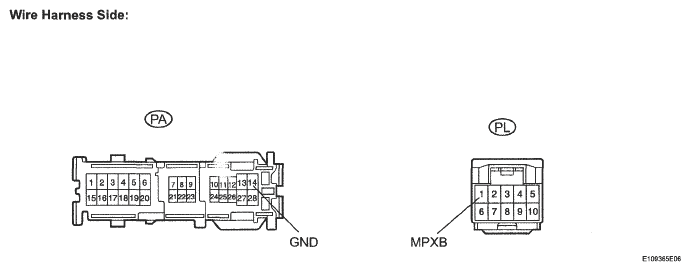

Fig 1: Identifying PL And PA Body ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the PL and PA body ECU connectors.
2. Measure the resistance and voltage of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   PA - 14 (GND) - Body ground	Below 1 Ω

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   PL - 1 (MPXB) - Body ground	10 to 14 V

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO Next Step

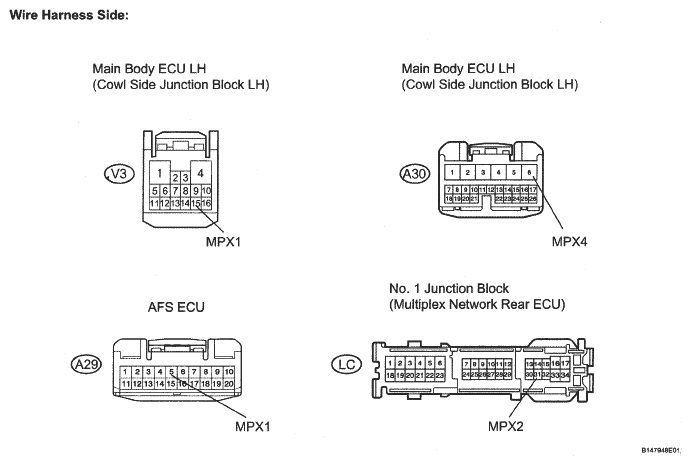

Fig 2: Identifying V3, A30 And A29 ECU And LC Junction Block Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the V3, A30 and A29 ECU connectors.
2. Disconnect the LC junction block connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   V3 - 15 (MPX1) - LC-31 (MPX2)	Below 1 Ω
   A30-6 (MPX4) - A29-5 (MPX1)	Below 1 Ω

   Result

   RESULT REFERENCE CHART



   Result	Proceed to
   Both are OK	A
   One is OK	B
   Both are NG	C

B: REPAIR OR REPLACE MAIN BODY ECU LH AND WIRE HARNESS OR CONNECTOR

C: REPAIR OR REPLACE HARNESS OR CONNECTOR

A: REPLACE MAIN BODY ECU LH
