Inspection Procedure

1. Check that the steering pad switch can operate the audio system normally.

   OK:

   Steering pad switch can operate audio system normally.

OK: REPLACE RADIO AND PLAYER ECU

NG: GO TO Next Step

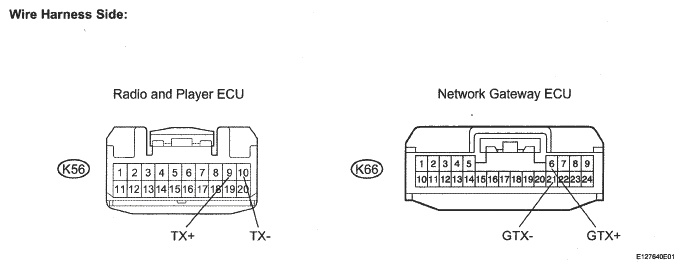

Fig 1: Identifying K56 And K66 ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the K56 and K66 ECU connectors.
2. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   K56-9 (TX+) - K66-6 (GTX+)	Below 1 Ω
   K56 - 10 (TX-) - K66-21 (GTX-)	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE RADIO AND PLAYER ECU
