System Diagram

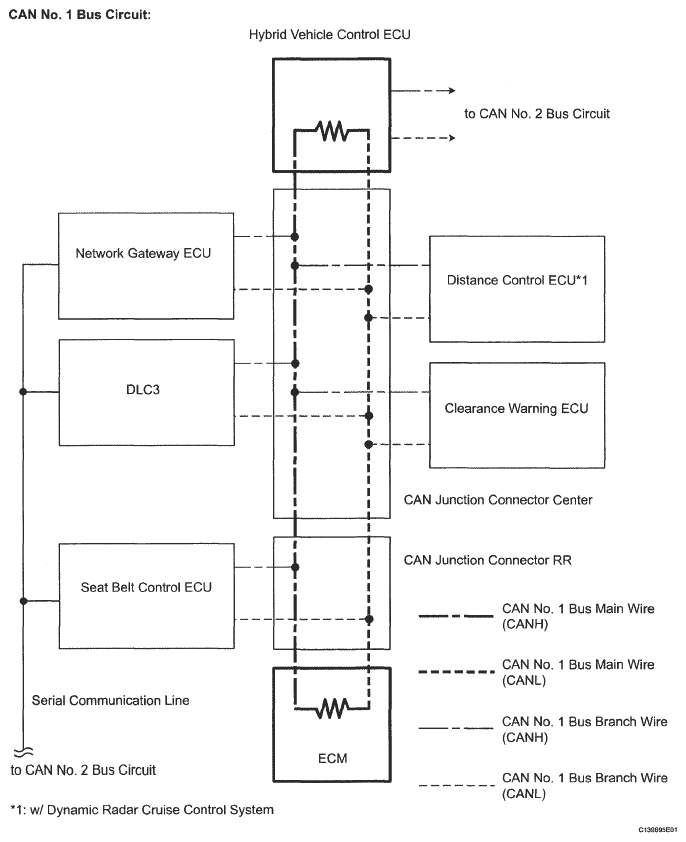

Fig 1: CAN Communication System Diagram (CAN No. 1 Bus Circuit)
G05312312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

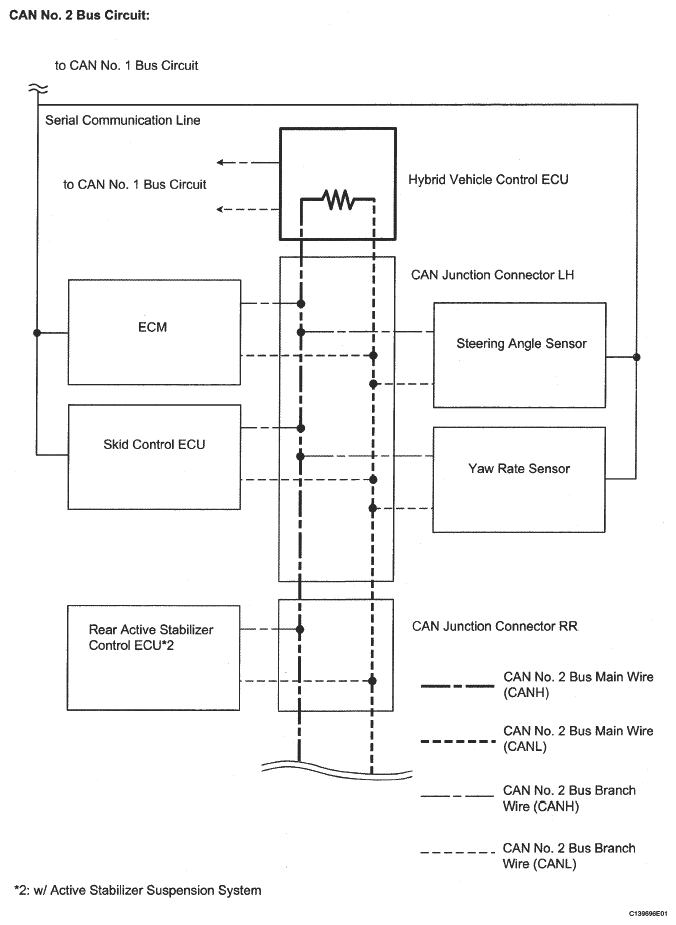

Fig 2: CAN Communication System Diagram (CAN No. 2 Bus Circuit) (1 Of 2)
G05312313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

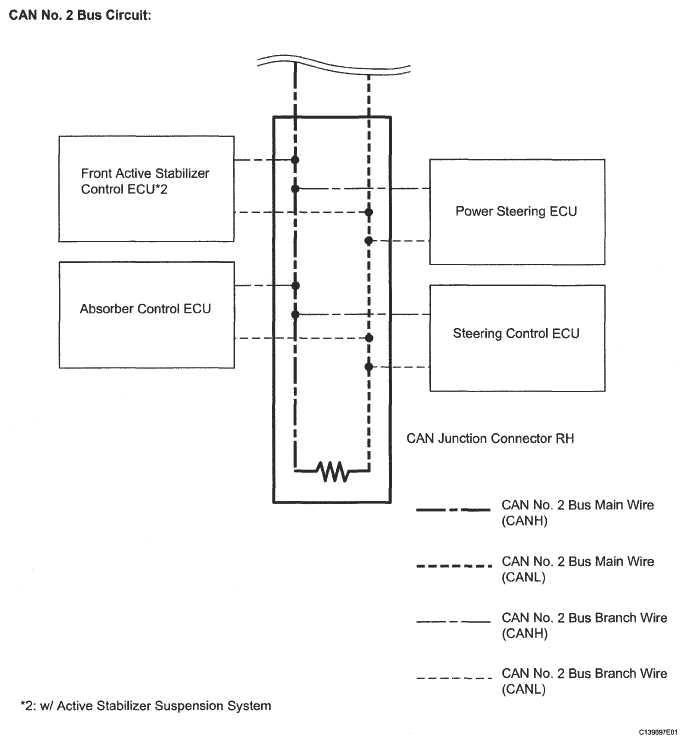

Fig 3: CAN Communication System Diagram (CAN No. 2 Bus Circuit) (2 Of 2)
G05312314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
