Inspection Procedure
- CHECK WIRE HARNESS (HYBRID VEHICLE CONTROL ECU - BATTERY AND BODY GROUND)
- Disconnect the A54 and E84 hybrid vehicle control ECU connectors.

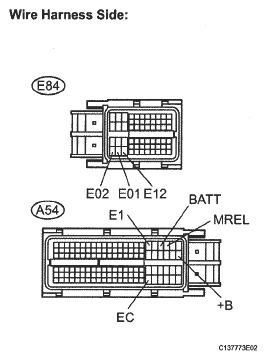

- Measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition A54-18 (E1) - Body ground Below 1 Ω A54-104 (EC) - Body ground Below 1 Ω E84-50 (E02) - Body ground Below 1 Ω E84-51 (E01) - Body ground Below 1 Ω E84-52 (E12) - Body ground Below 1 Ω - Measure the voltage of the wire harness side connector.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Condition Specified Condition A54-20 (BATT) - Body ground Always 10 to 14 V A54-46 (+B) - Body ground Battery's positive (+) voltage is applied to terminal A54-21 (MREL) 10 to 14 V
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE HYBRID VEHICLE CONTROL ECU
