DTC B2602 Key Unlock Warning Switch Circuit Malfunction; DTC B2606 Key Code Confirm Signal Malfunction: Wiring Diagram

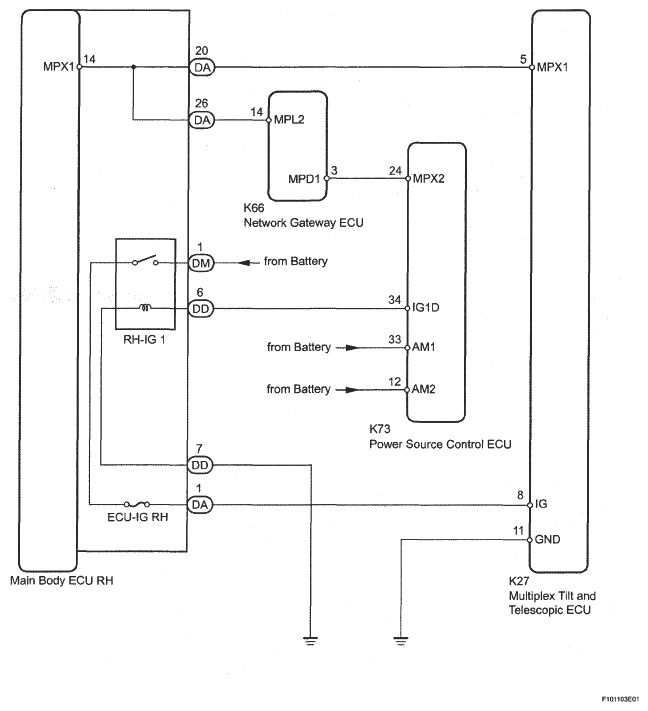

Fig 1: Key Unlock Warning Switch Circuit - Wiring Diagram
G05306253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
