Inspection Procedure

HINT:

Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction (see FREEZE FRAME DATA ).

  1. READ OUTPUT DTC
    1. Connect the intelligent tester to the DTC3.
    2. Turn the power switch ON (IG) and turn the tester ON.
    3. Enter the following menus: Powertrain / Engine and ECT /DTC.
    4. Read DTCs.

      Result

      RESULT CHART

      Display (DTC Output) Proceed to
      P0110 A
      P0112 B
      P0113 C

    B:  GO TO step  5

    C:  GO TO step  3

    A: GO TO Next Step

  2. READ VALUE OF INTELLIGENT TESTER (INTAKE AIR TEMPERATURE)
    1. Put the engine in inspection mode (see INSPECTION MODE PROCEDURE ).
    2. Connect the intelligent tester to the DLC3.
    3. Turn the tester ON.
    4. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
    5. Read the value displayed on the tester.

      Standard:

      Same as actual Intake Air Temperature (IAT).

      Result

      RESULT CHART

      Temperature Displayed Proceed to
      -40°C (-40°F) A
      140°C (284°F) or higher B
      Same as actual IAT C

      HINT:

      • If there is an open circuit, the intelligent tester indicates-40°C (-40°F).
      • If there is a short circuit, the intelligent tester indicates 140°C (284°F) or higher.

    B:  GO TO step  5

    C: CHECK FOR INTERMITTENT PROBLEMS

    A: GO TO Next Step

  3. READ VALUE OF INTELLIGENT TESTER (CHECK FOR OPEN IN WIRE HARNESS)
    1. Disconnect the E42 Mass Air Flow (MAF) meter connector.
    2. Connect terminals THA and E2 of the MAF meter wire harness side connector.
    3. Connect the intelligent tester to the DLC3.
    4. Turn the power switch ON (IG).
    5. Turn the tester ON.
    6. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
    7. Read the value displayed on the tester.

      Standard:

      140°C (284°F) or higher

    8. Reconnect the MAF meter connector.
      Fig 1: Identifying E42 MAF Meter Connector Terminals
      G05302320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: CONFIRM GOOD CONNECTION TO SENSOR. IF OK, REPLACE MASS AIR FLOW METER

    NG: GO TO Next Step

  4. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
    1. Disconnect the E42 MAF meter connector.
    2. Disconnect the E83 ECM connector.
    3. Measure the resistance.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      THA (E42-4) - THA (E83-55) Below 1 Ω
      E2 (E42-5) - E3 (E83-97) Below 1 Ω
    4. Reconnect the MAF meter connector.
    5. Reconnect the ECM connector.

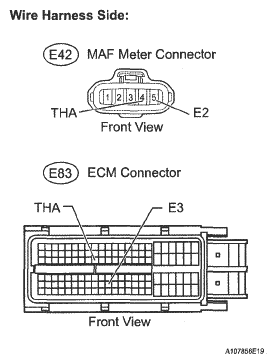

      Fig 2: Identifying E42 MAF Meter Connector Terminals
      G05302321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: CONFIRM GOOD CONNECTION TO ECM. IF OK, REPLACE ECM

  5. READ VALUE OF INTELLIGENT TESTER (CHECK FOR SHORT IN WIRE HARNESS)
    1. Disconnect the E42 MAF meter connector.
    2. Connect the intelligent tester to the DLC3.
    3. Turn the power switch ON (IG).
    4. Turn the tester ON.
    5. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
    6. Read the value displayed on the tester.

      Standard:

      -40°C (-40°F)

    7. Reconnect the MAF meter connector.
      Fig 3: Checking Short In Wire Harness
      G05302322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE MASS AIR FLOW METER

    NG: GO TO Next Step

  6. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
    1. Disconnect the E42 MAF meter connector.
    2. Disconnect the E83 ECM connector.
    3. Measure the resistance.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      THA (E42-4) or THA (E83-55) - Body ground 10 kΩ or higher
    4. Reconnect the MAF meter connector.
    5. Reconnect the ECM connector.

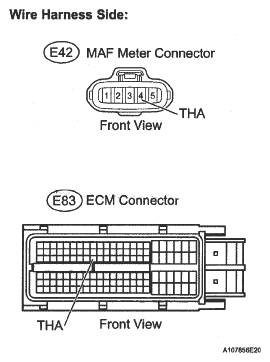

      Fig 4: Identifying E42 MAF Meter Connector Terminals
      G05302323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE ECM
