DTC P0100 Mass or Volume Air Flow Circuit; DTC P0102 Mass or Volume Air Flow Circuit Low Input; DTC P0103 Mass or Volume Air Flow Circuit High Input: Wiring Diagram

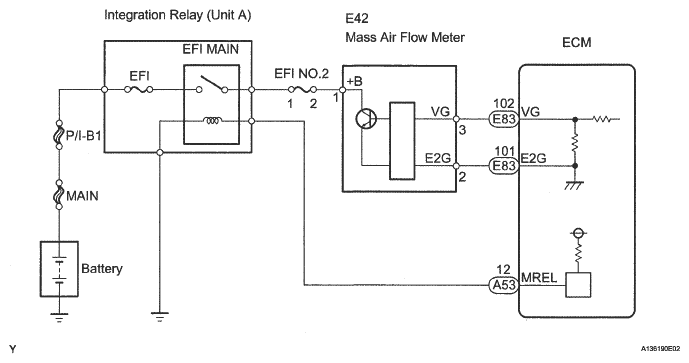

Fig 1: Mass Or Volume Air Flow - Wiring Diagram
G05302311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
