Front Passenger Side Door Entry Unlock Function does not Operate: Wiring Diagram

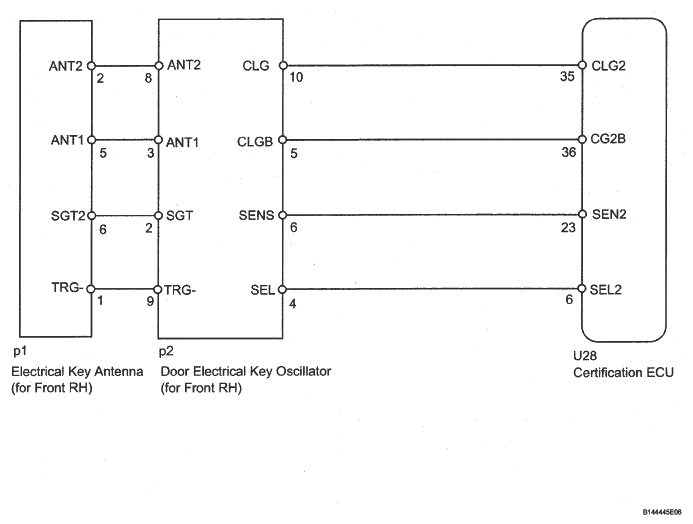

Fig 1: Front Passenger Side Door Entry Unlock Function Does Not Operate - Wiring Diagram
G05311022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
